Engineered to exacting factory tolerances for flawless mechanical integration. From high-torque 1/3 HP motors and optical encoder gearboxes to microprocessor control boards, heavy-duty arm linkages, and AODA universal washroom systems — all parts are factory tested, UL recognized, and available for expedited Canadian dispatch.

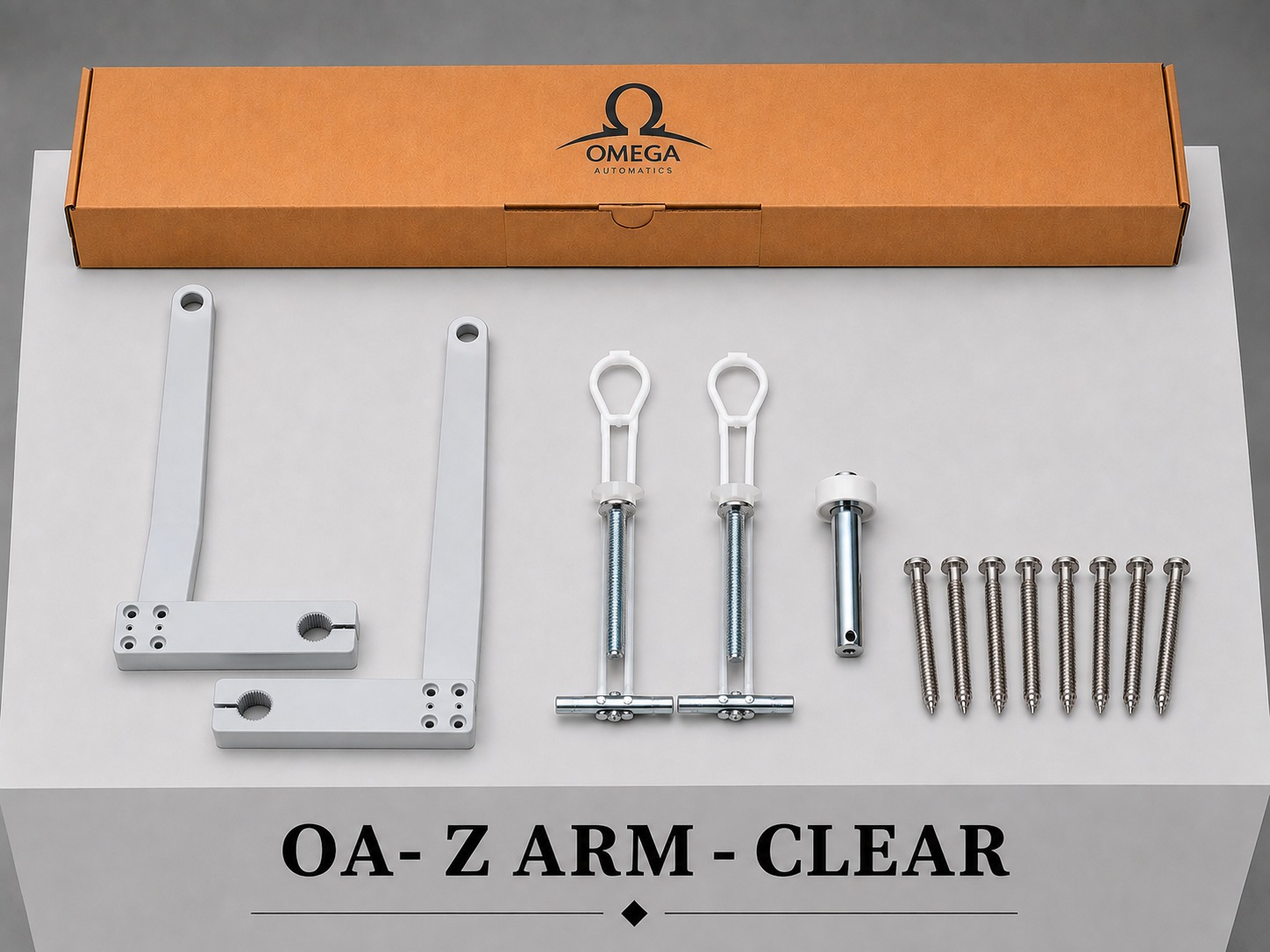

Heavy-duty splined push Z-Arm linkage assembly engineered for standard and deep reveals. Complete with mounting track brackets, pivot bearings, and high-tensile hardware.

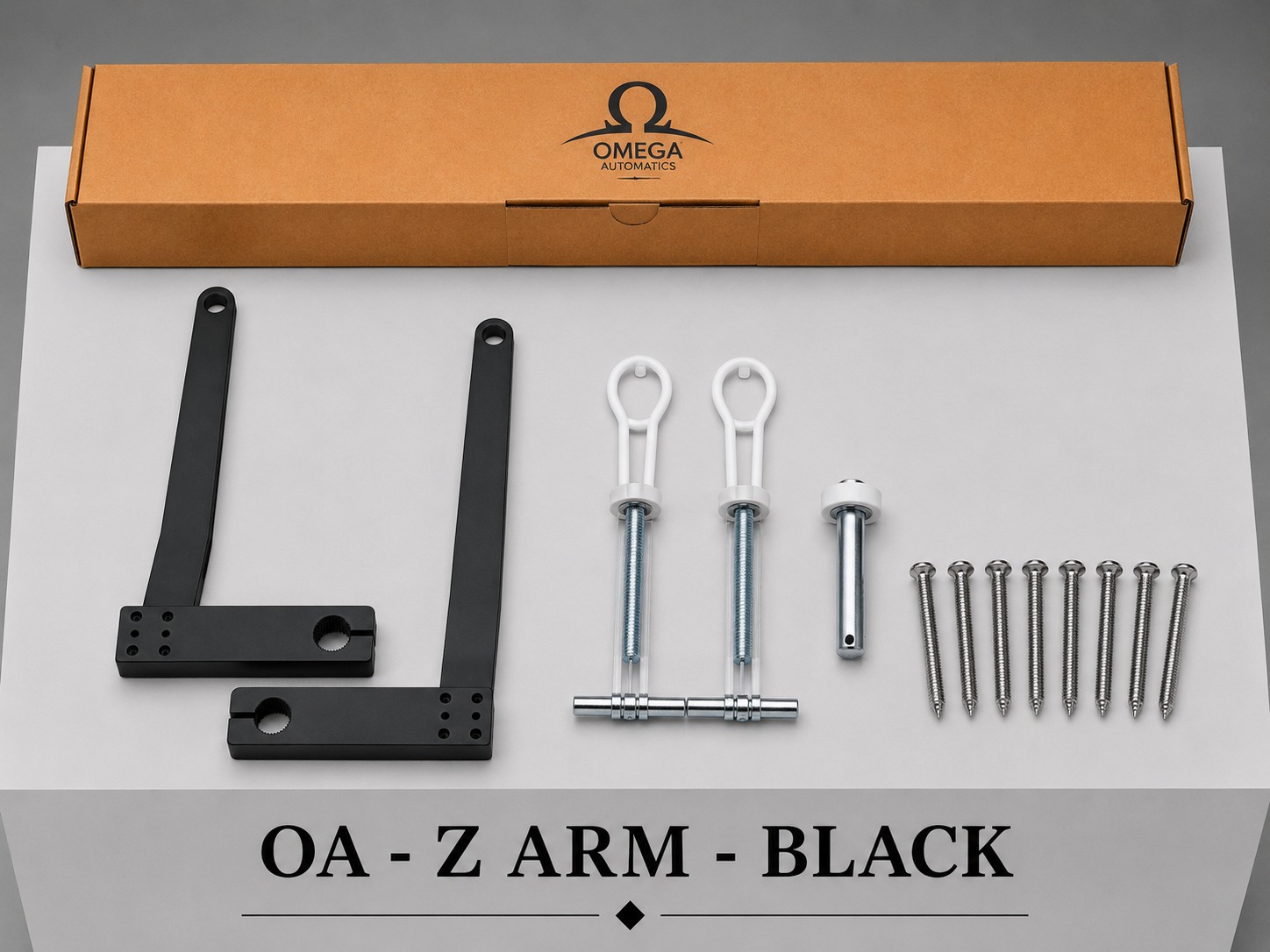

Architectural black anodized finish Z-Arm assembly designed for modern dark-frame storefronts and commercial entranceways.

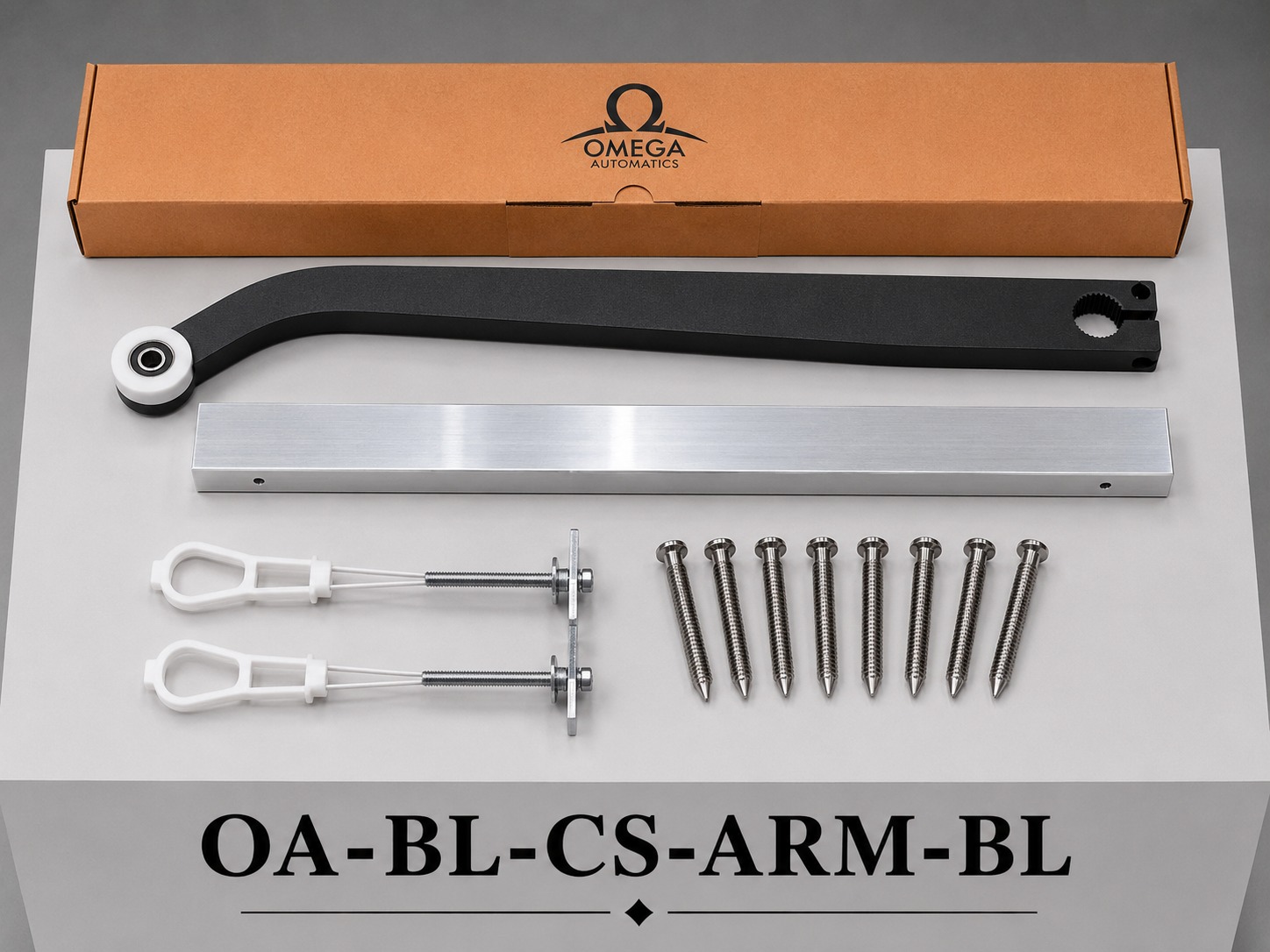

High-strength bottom-load centre spindle drive arm and concealed slider channel in architectural black finish with roller bearing assembly.

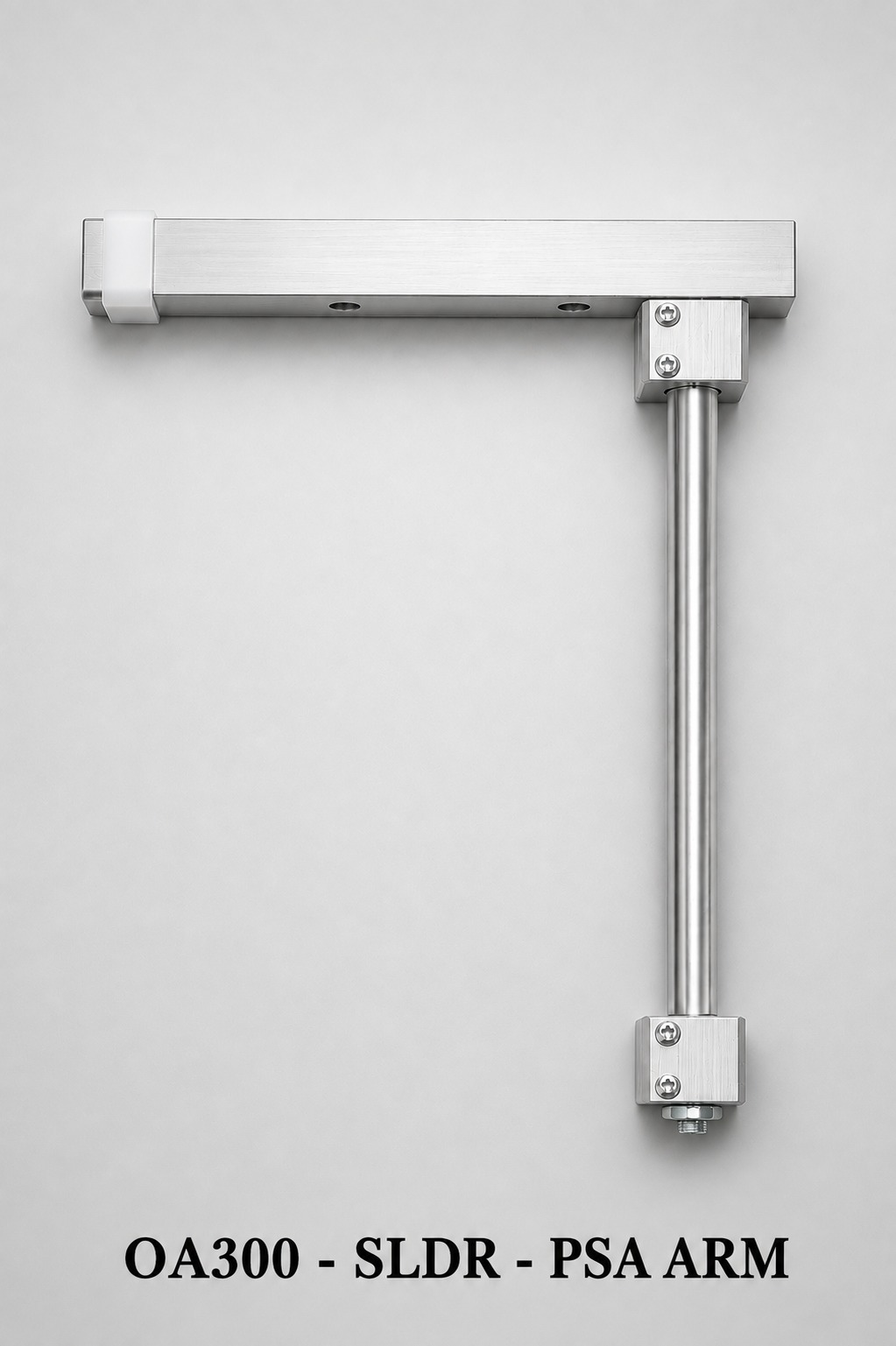

Precision-machined sliding door carrier PSA guide arm assembly featuring rigid tubular stainless steel linkage, low-friction nylon buffer, and structural pivot mount blocks.

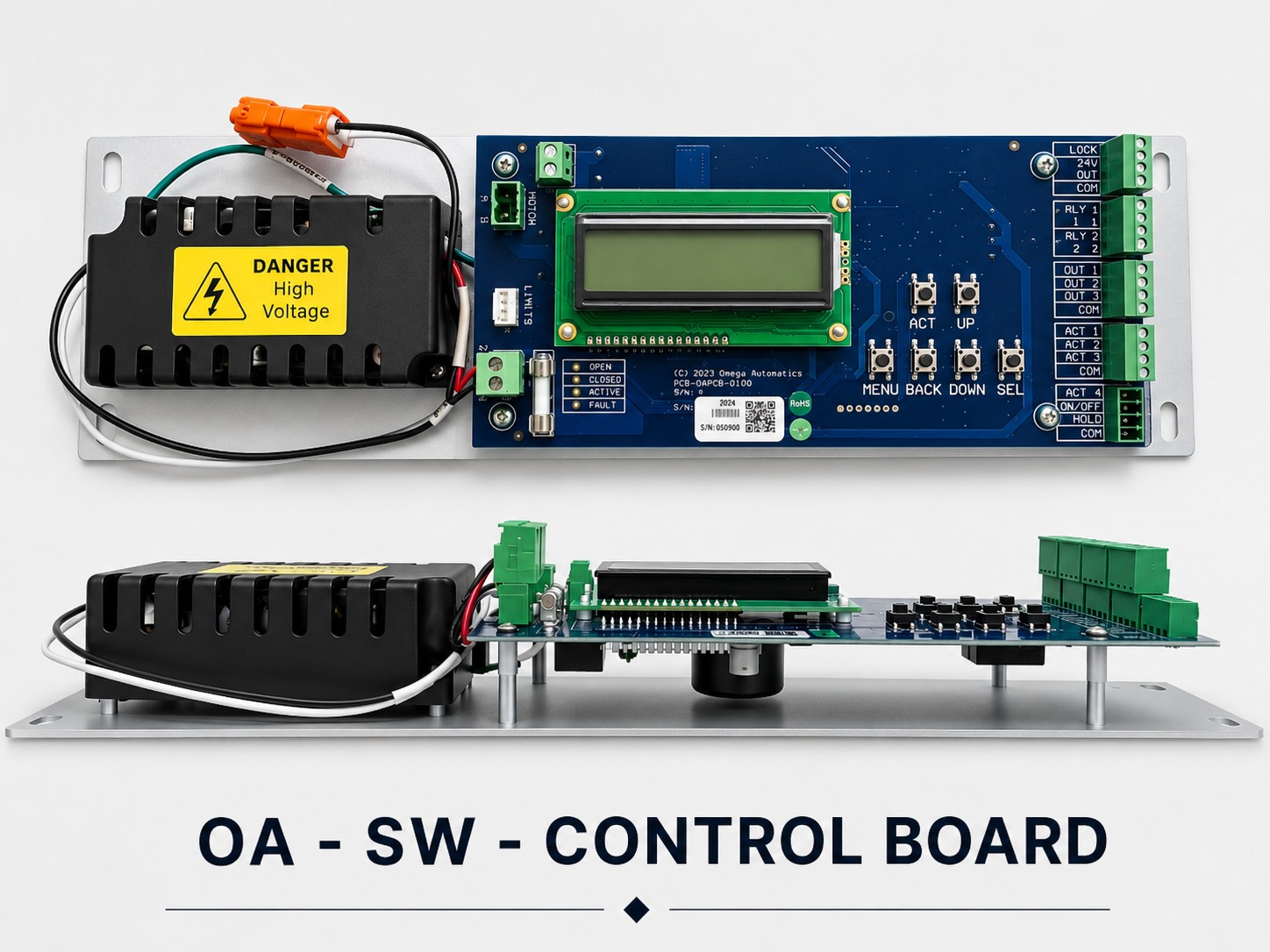

Advanced microprocessor controller equipped with illuminated 16-character alphanumeric LCD display, on-board 24VDC power supply unit, multi-relay lock controls, and on-board diagnostic test buttons.

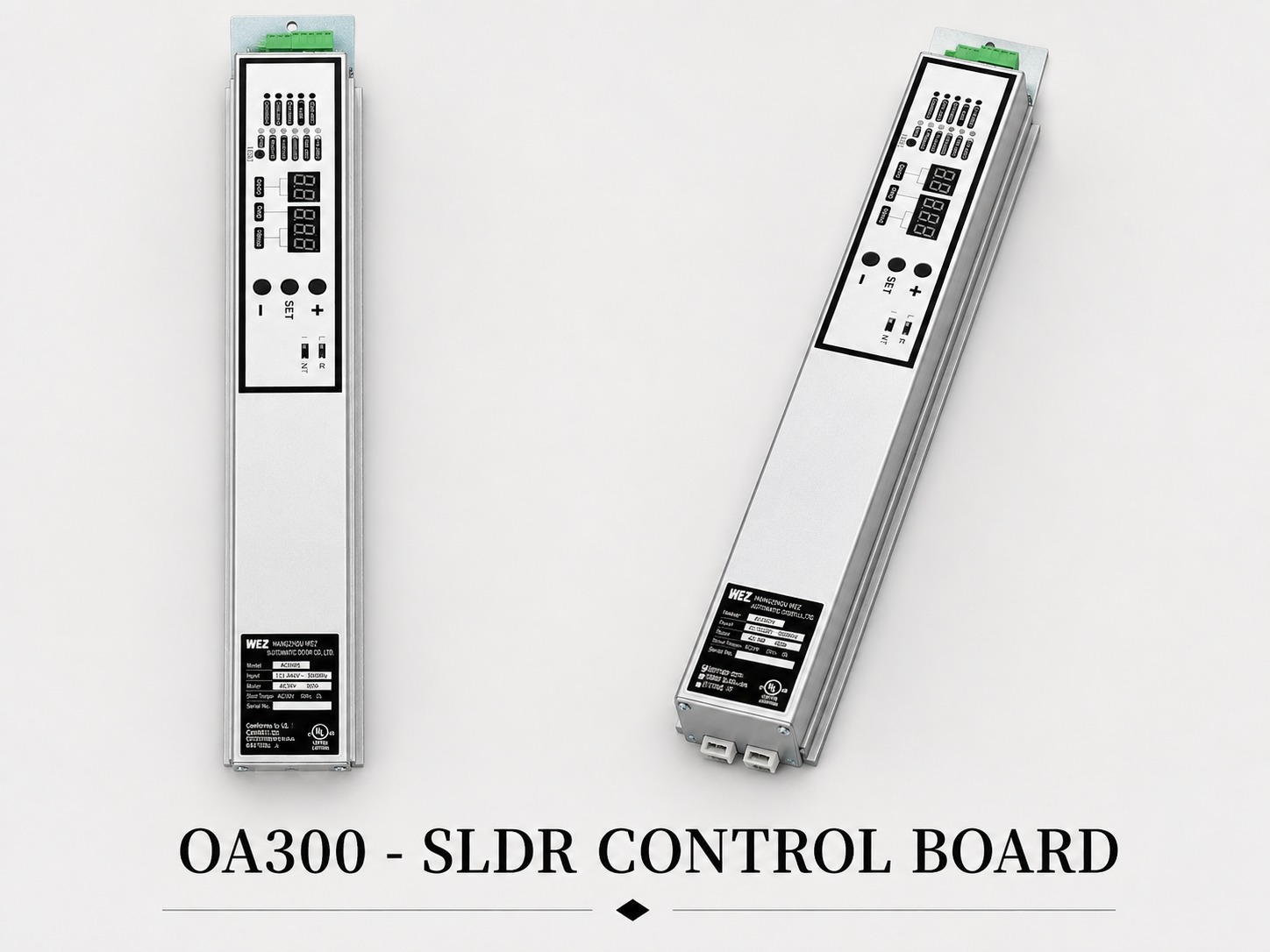

Heavy-duty digital multi-function controller module housed in a shielded aluminum chassis. Features dual 7-segment digital diagnostics, 20-level torque control, and programmable opening profiles.

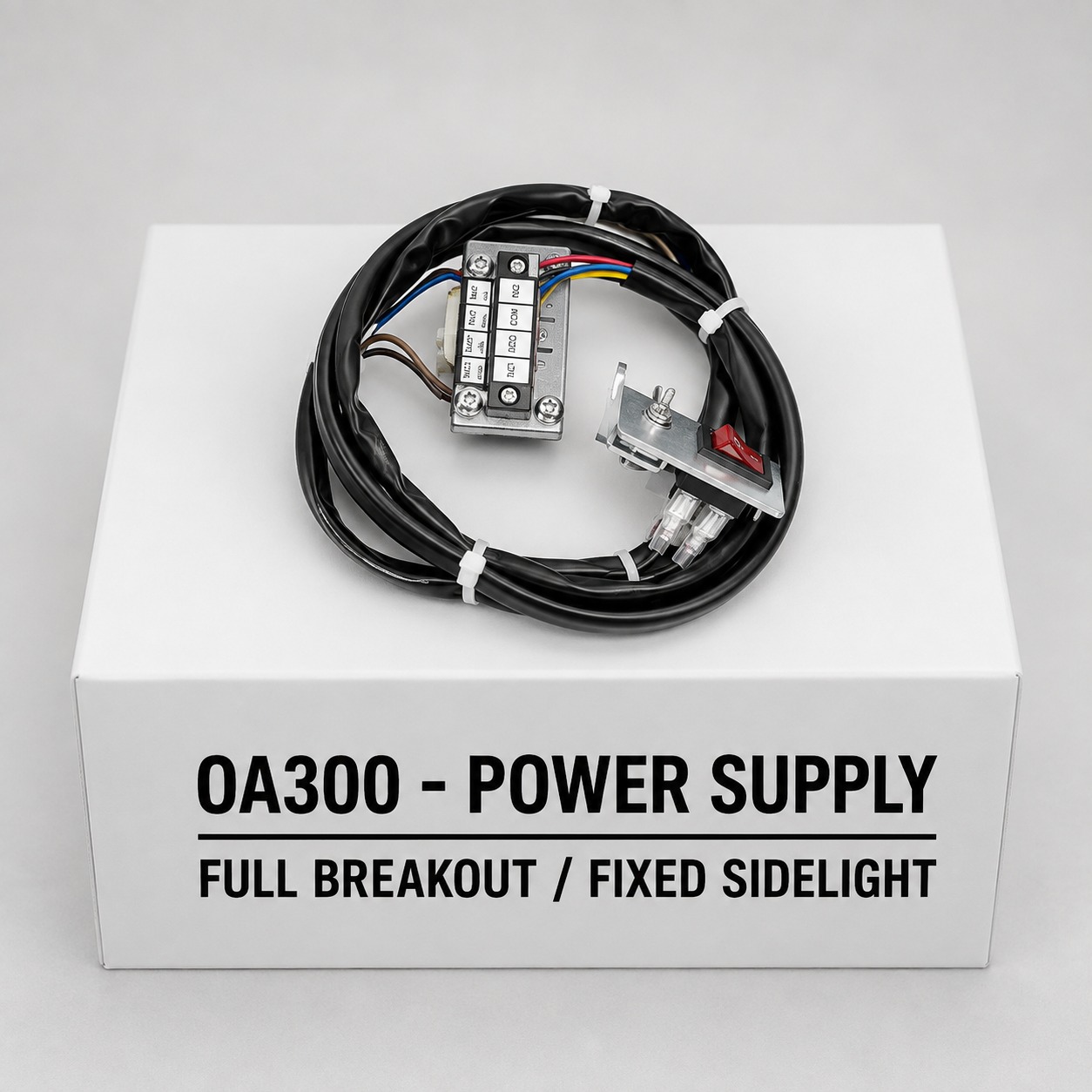

Factory pre-wired master power supply switch module with insulated harness, illuminated red rocker power switch, mounting bracket, and 6-position barrier terminal block.

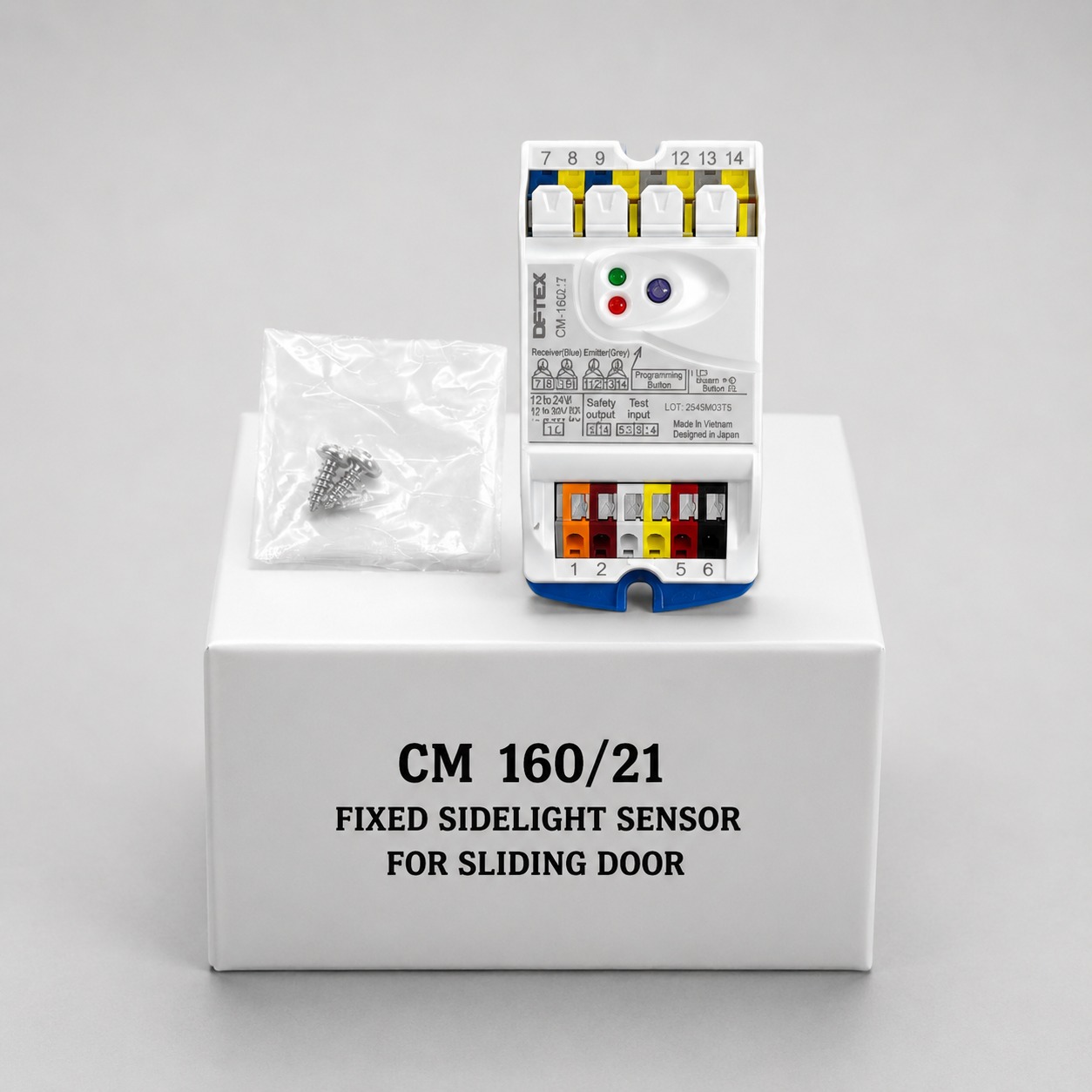

Active infrared fixed sidelight safety detection sensor module (OPTEX CM-16021) with plug-in color-coded terminal connectors and one-touch programming.

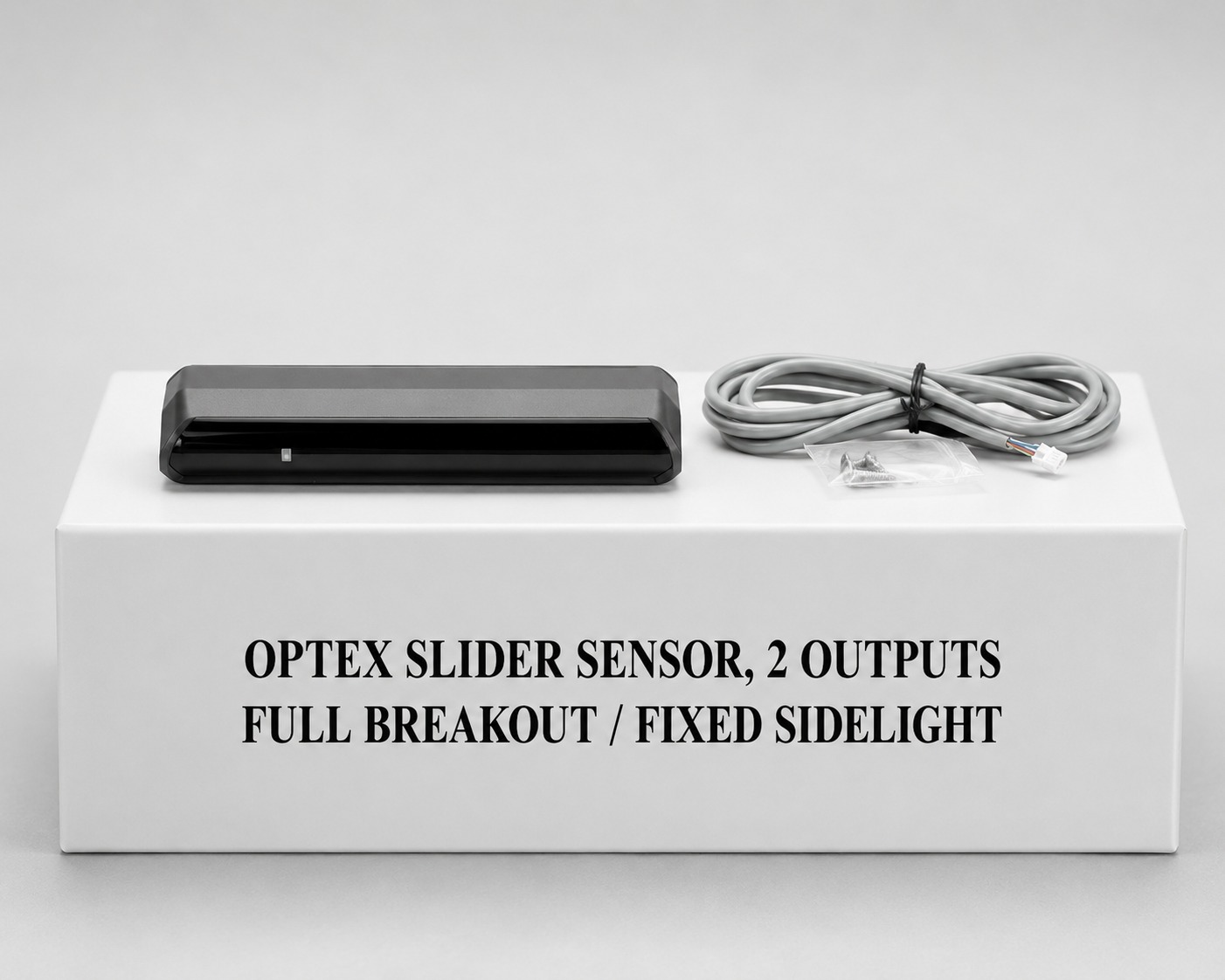

Dual-output activation and presence safety sensor combining wide-pattern radar/infrared detection zones for threshold safety on commercial sliding door systems.

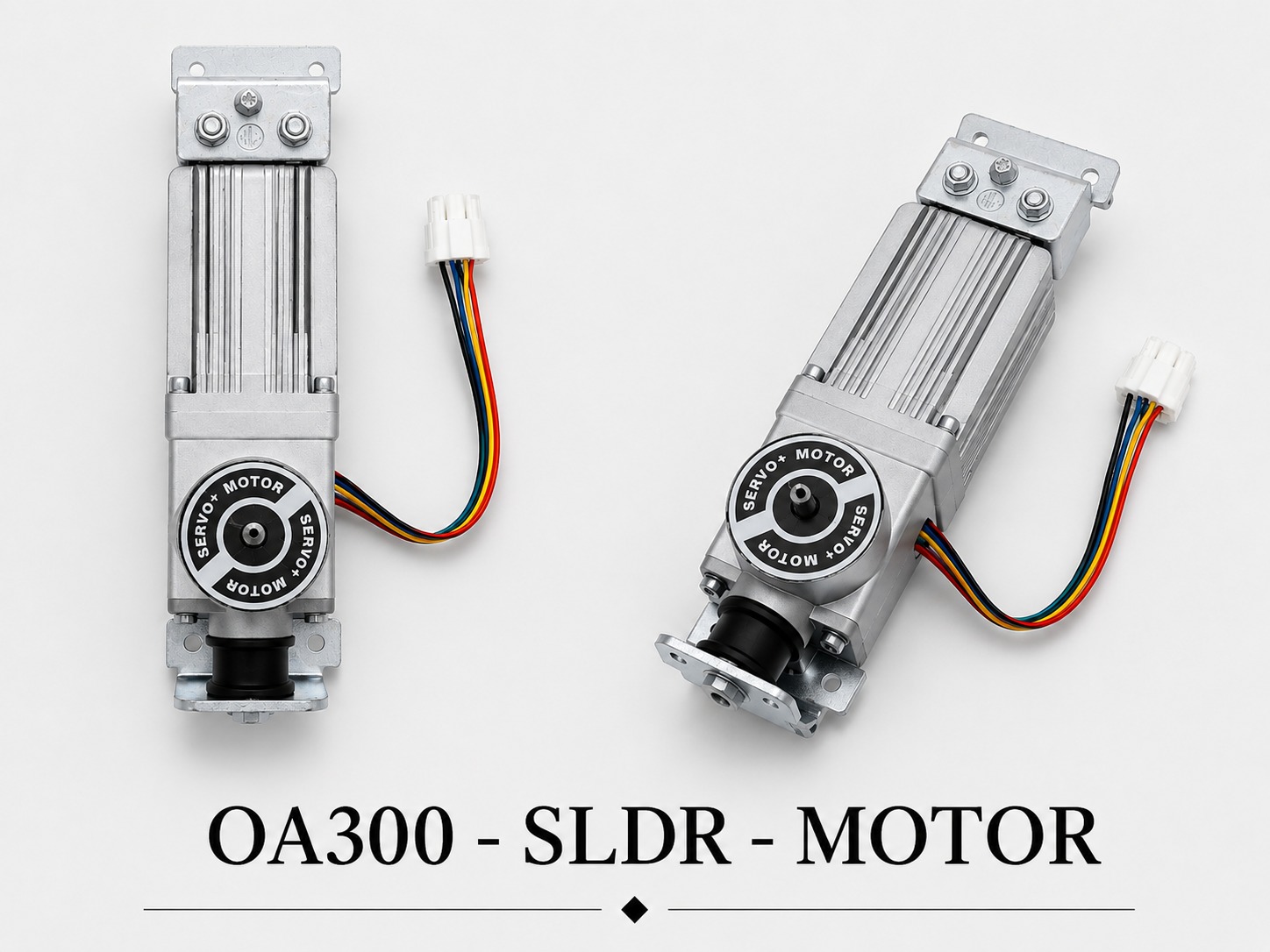

High-torque brushless DC servo motor with hypoid helical reduction gear assembly, quiet rubber vibration isolators, and heavy-duty output drive pulley.

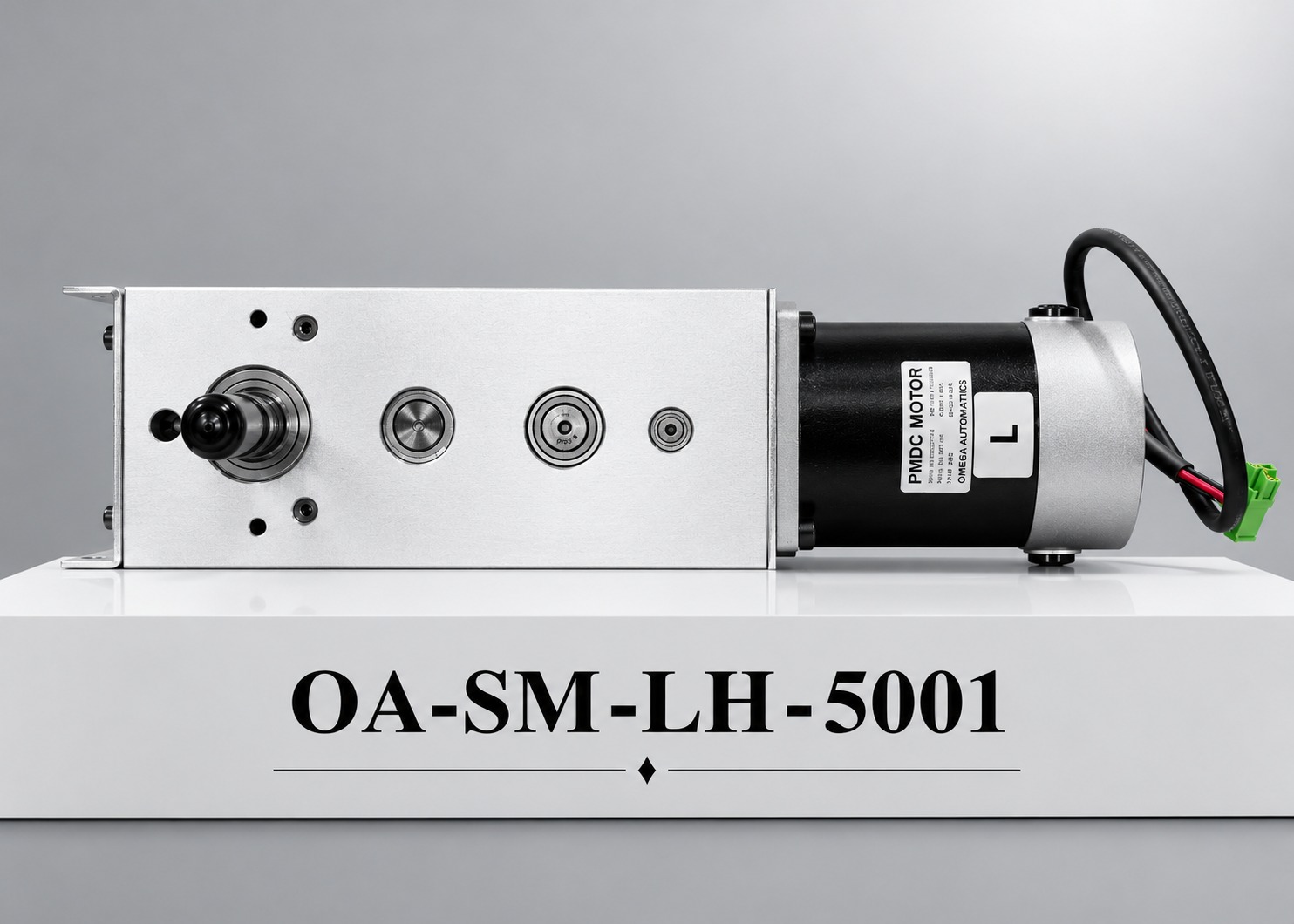

1/3 HP 24VDC PMDC motor with precision machined steel gear cluster in solid billet housing for left-hand surface mount swing operators.

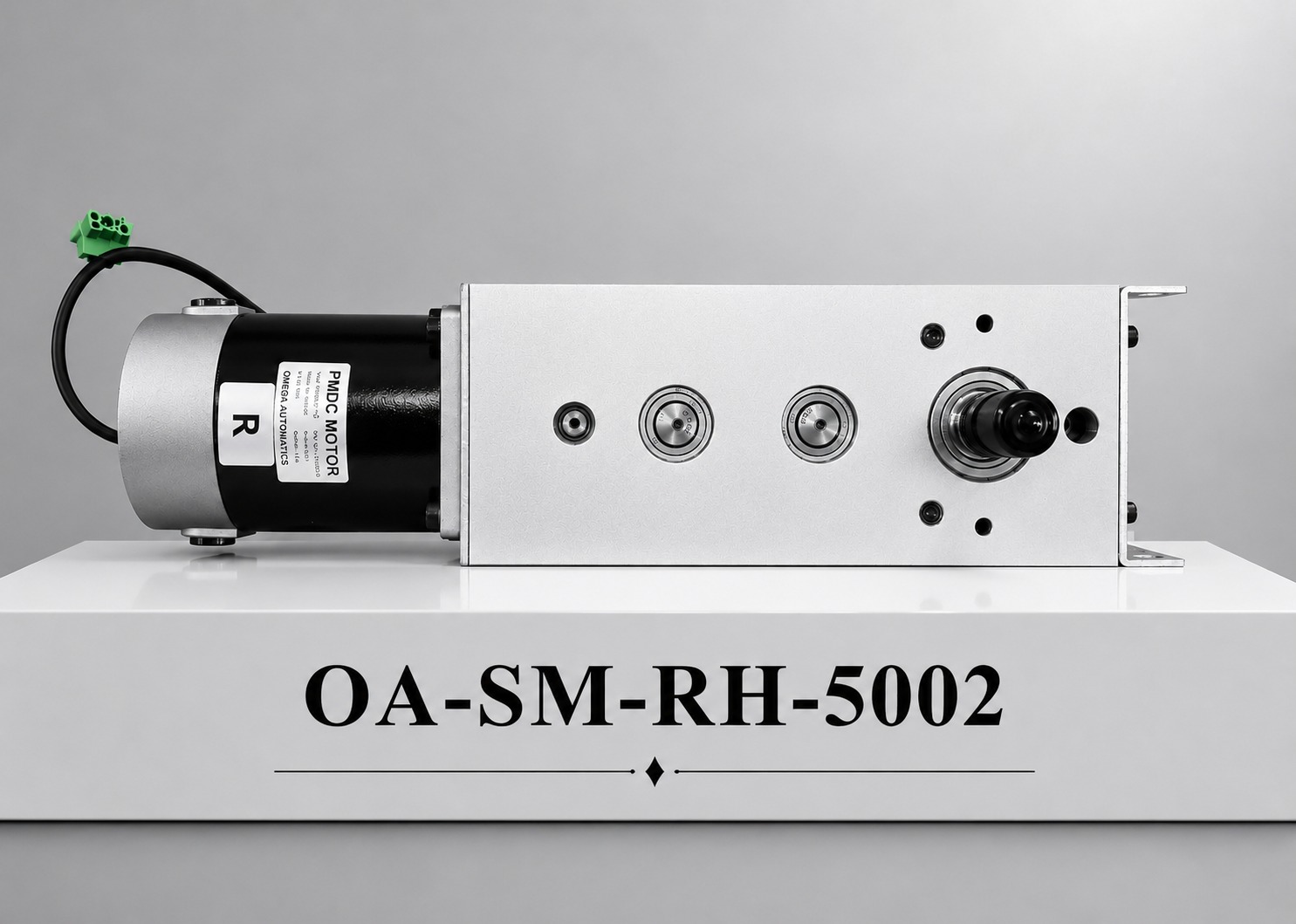

1/3 HP 24VDC PMDC motor with precision machined steel gear cluster in solid billet housing for right-hand surface mount swing operators.

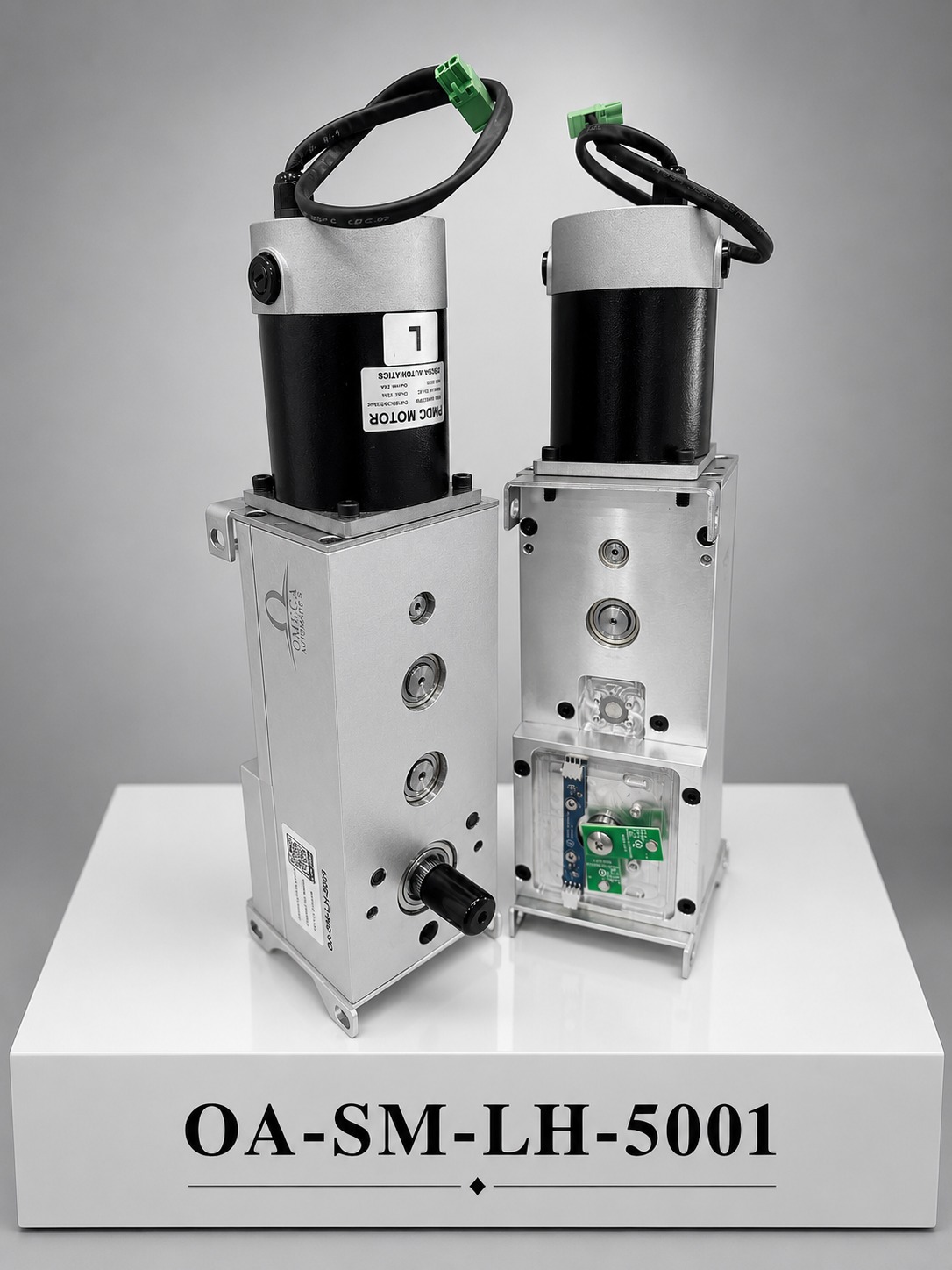

Dual isometric perspective of the left-hand surface mount motor and gear train showing output drive spindle, limit switch integration, and rigid chassis brackets.

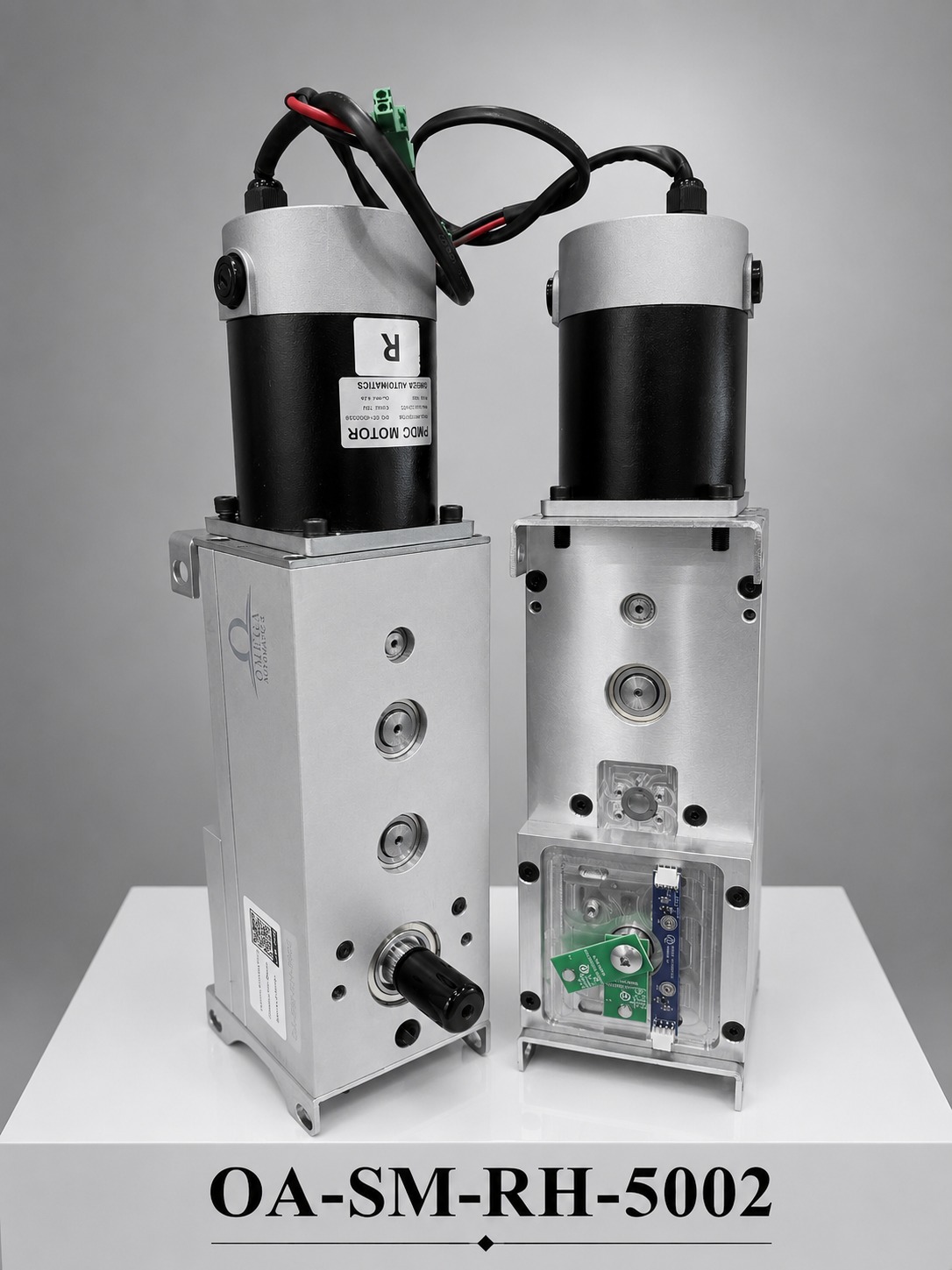

Dual isometric perspective of the right-hand surface mount motor and gear train showing output drive spindle, limit switch integration, and rigid chassis brackets.

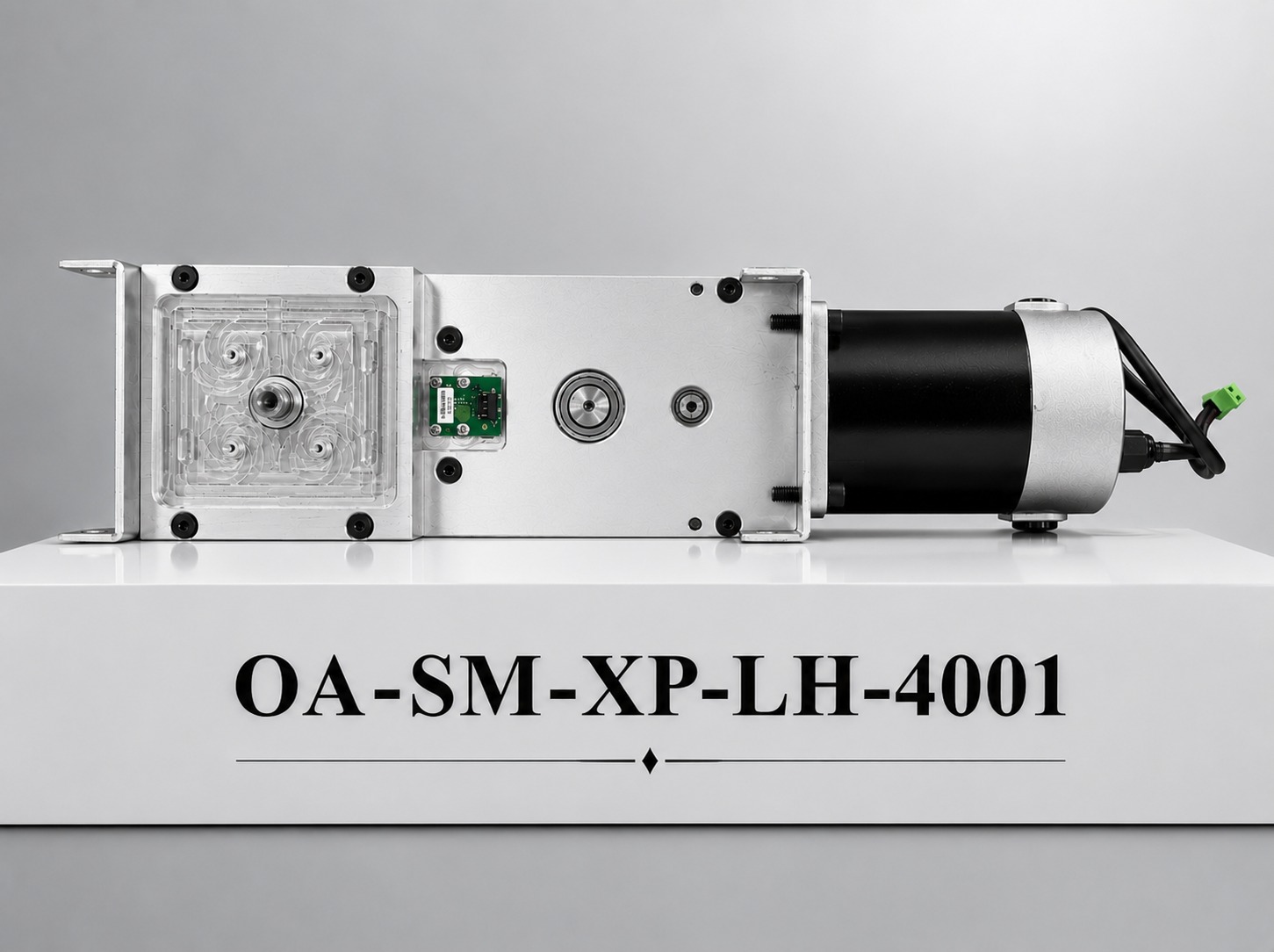

High-output Power Close drive system for exterior, pressurized, or high wind-load doors. Includes integrated optical encoder board and heavy-duty reinforced housing.

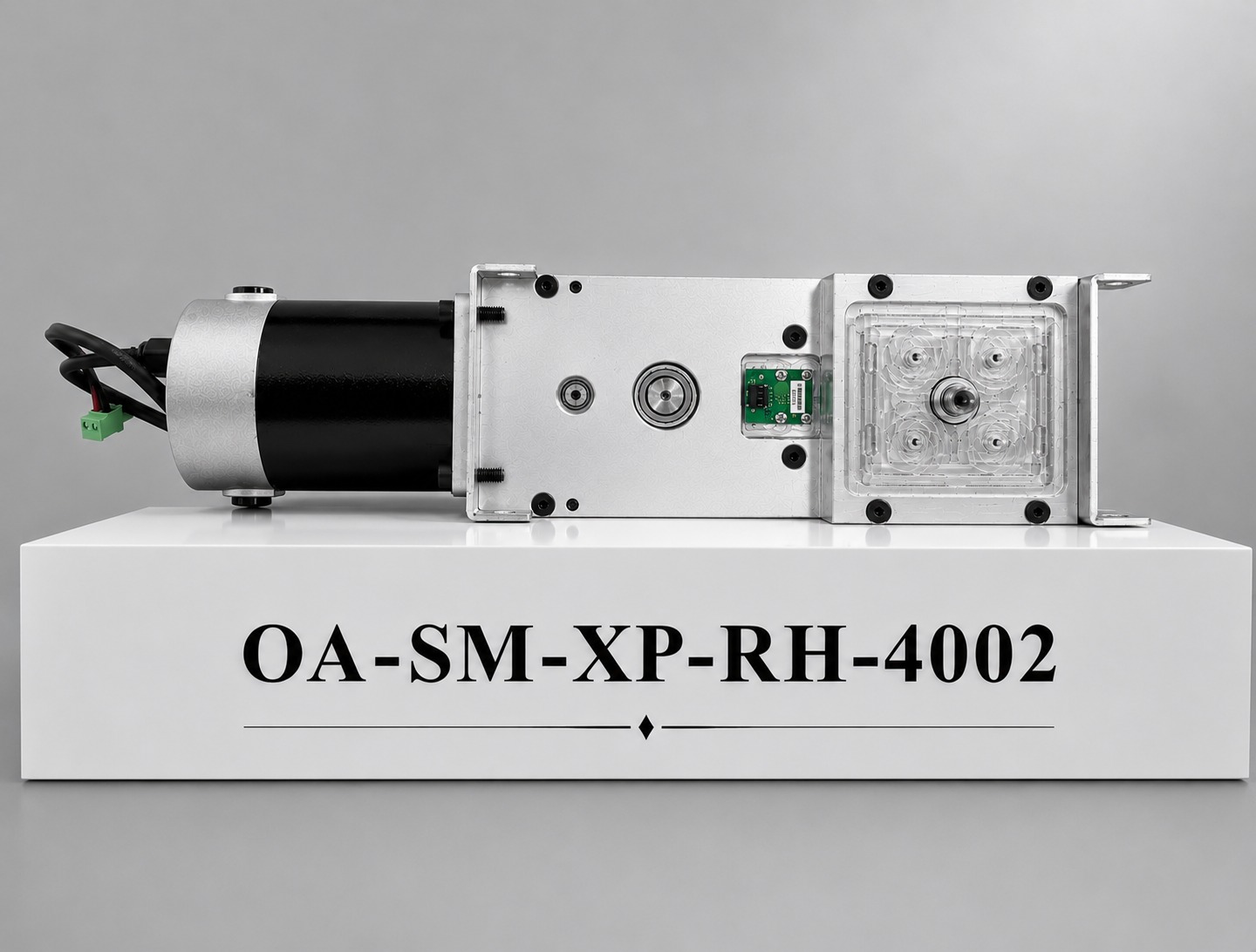

High-output Power Close drive system for right-hand exterior and wind-loaded doors with continuous digital position tracking.

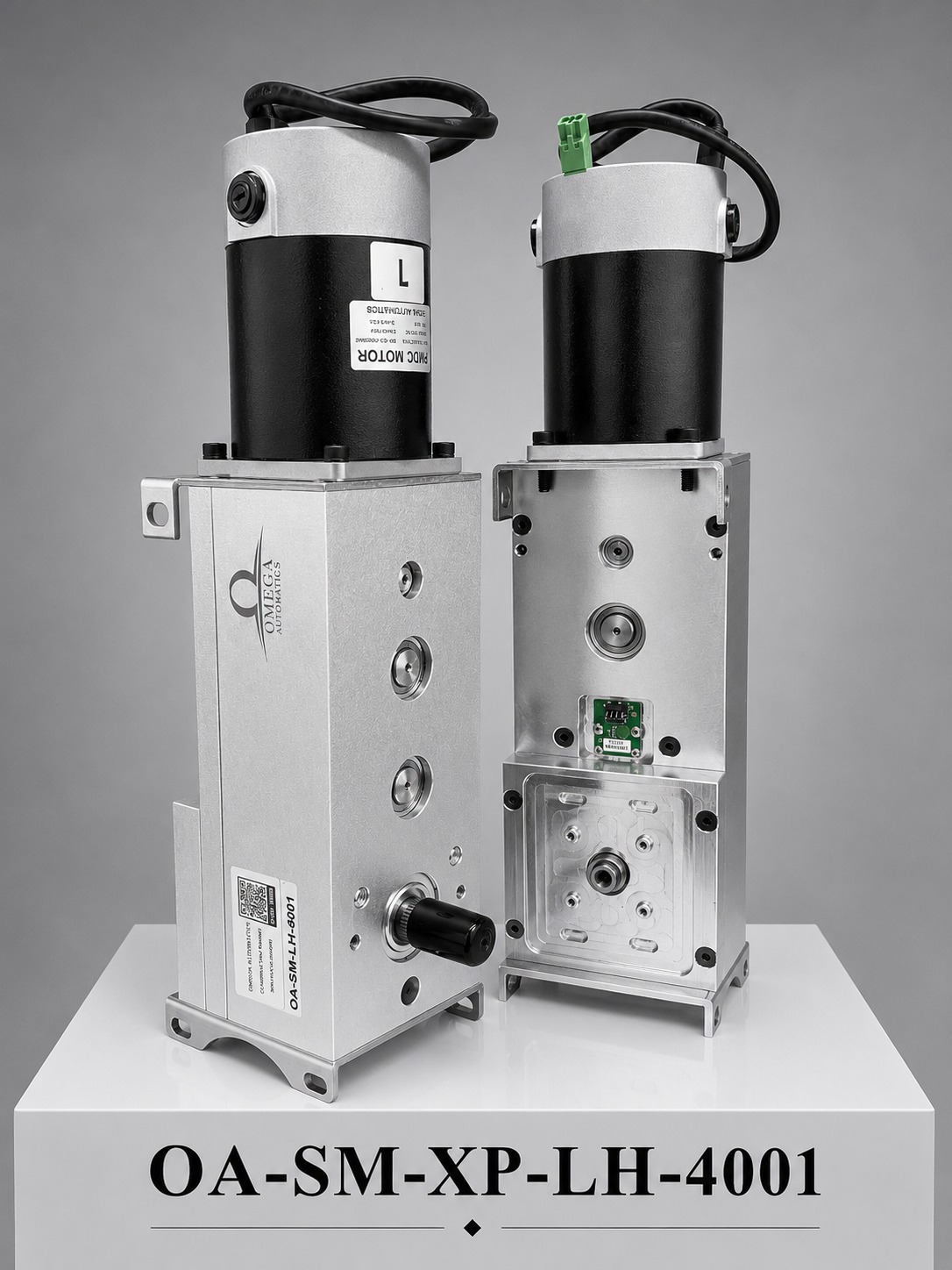

Dual view showing both sides of the OA-SM-XP-LH-4001 high-torque power close motor and protected encoder assembly.

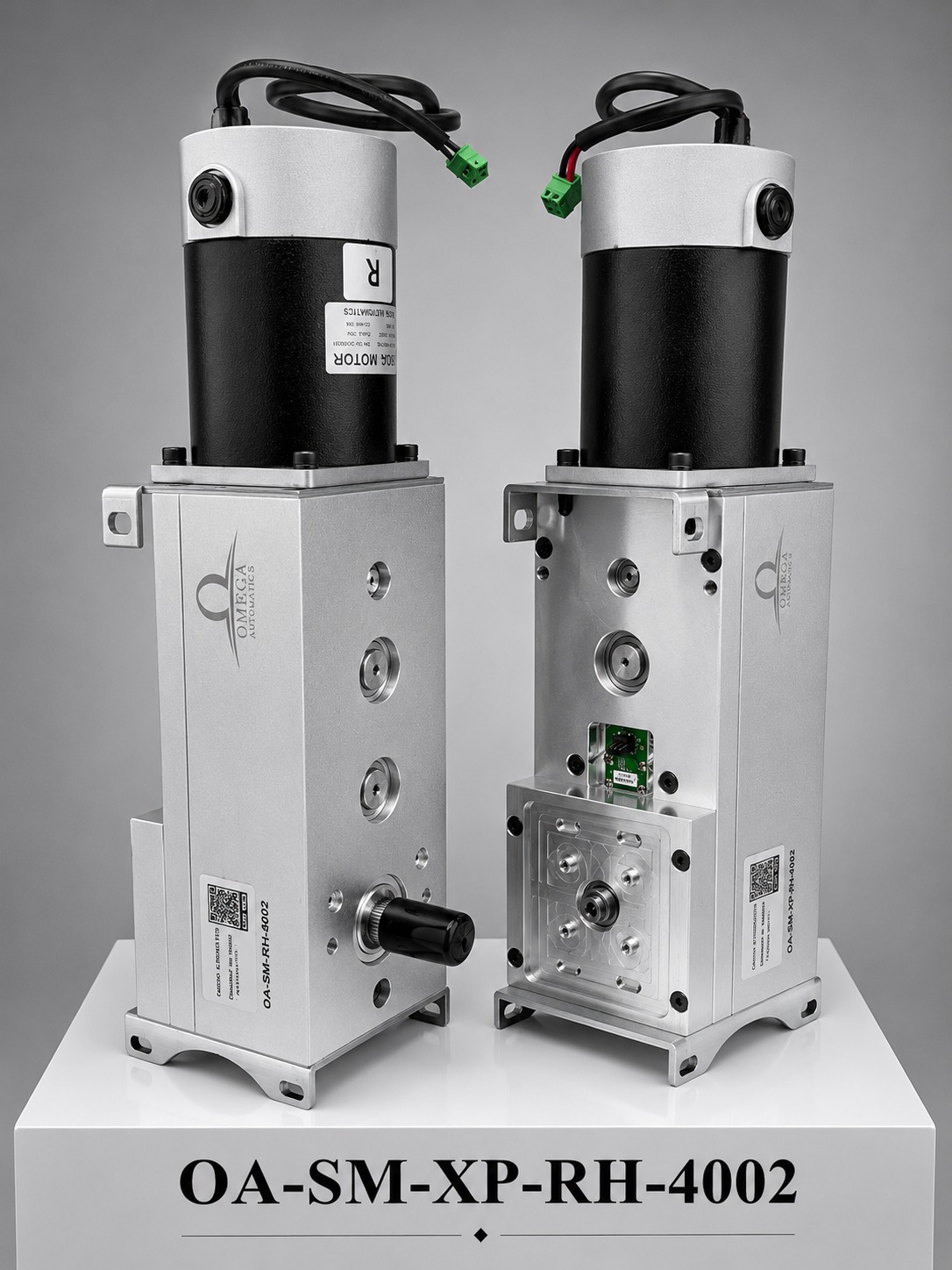

Dual view showing both sides of the OA-SM-XP-RH-4002 high-torque power close motor and protected encoder assembly.

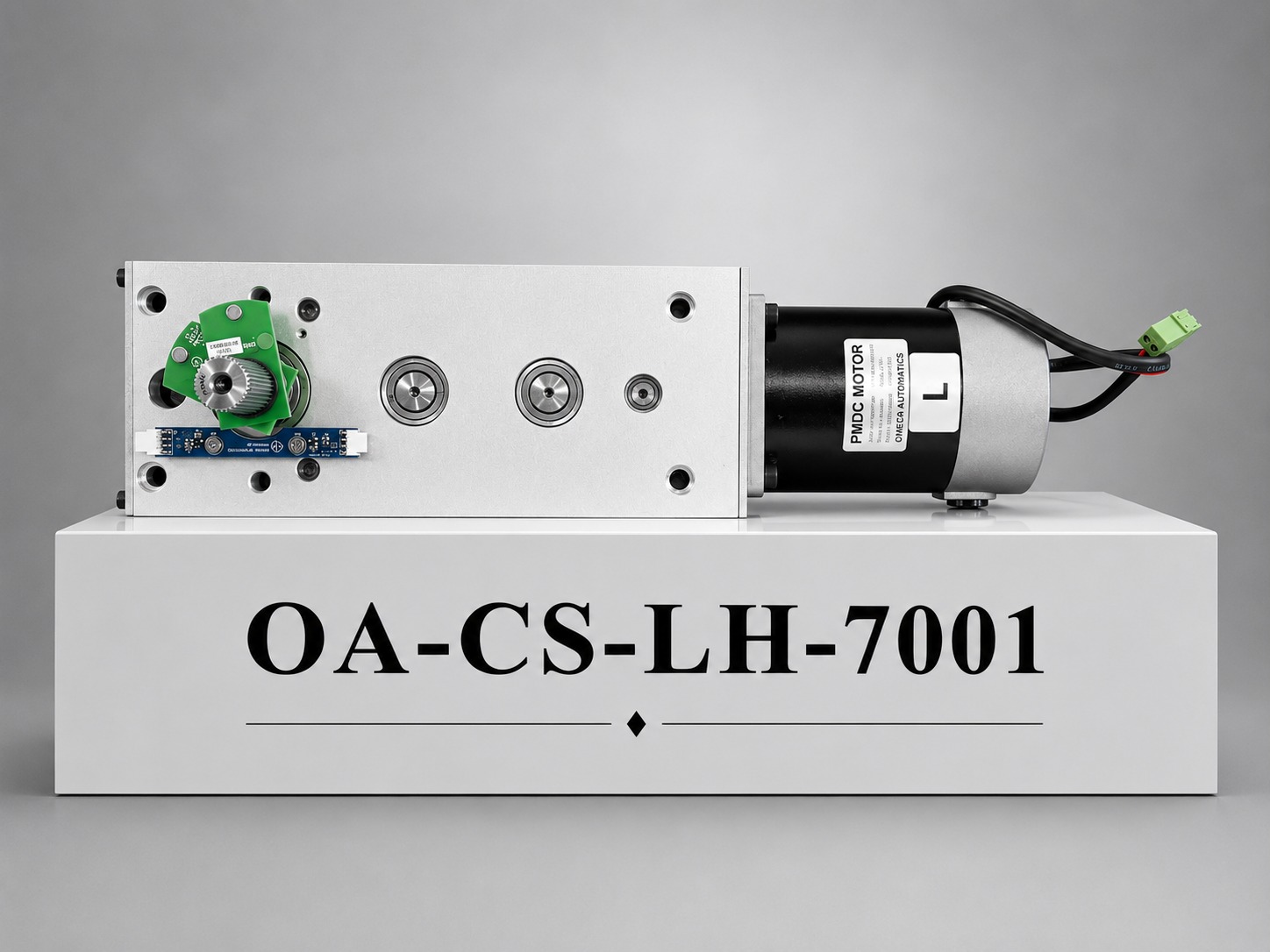

Concealed overhead transom operator drive assembly with integrated splined spindle drive pinion and hall-effect magnetic speed sensors.

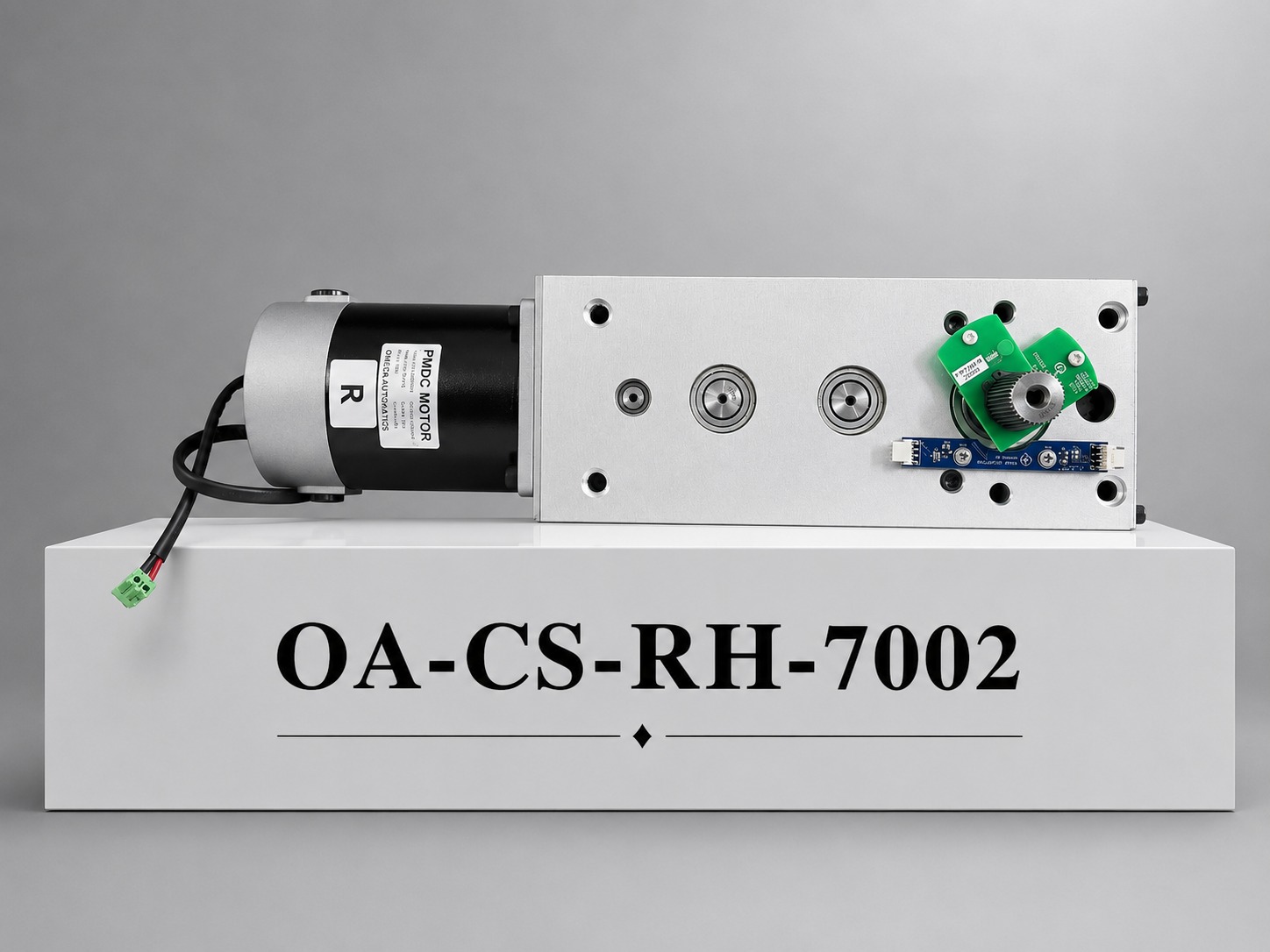

Concealed overhead transom operator drive assembly with integrated splined spindle drive pinion for right hand bottom load installations.

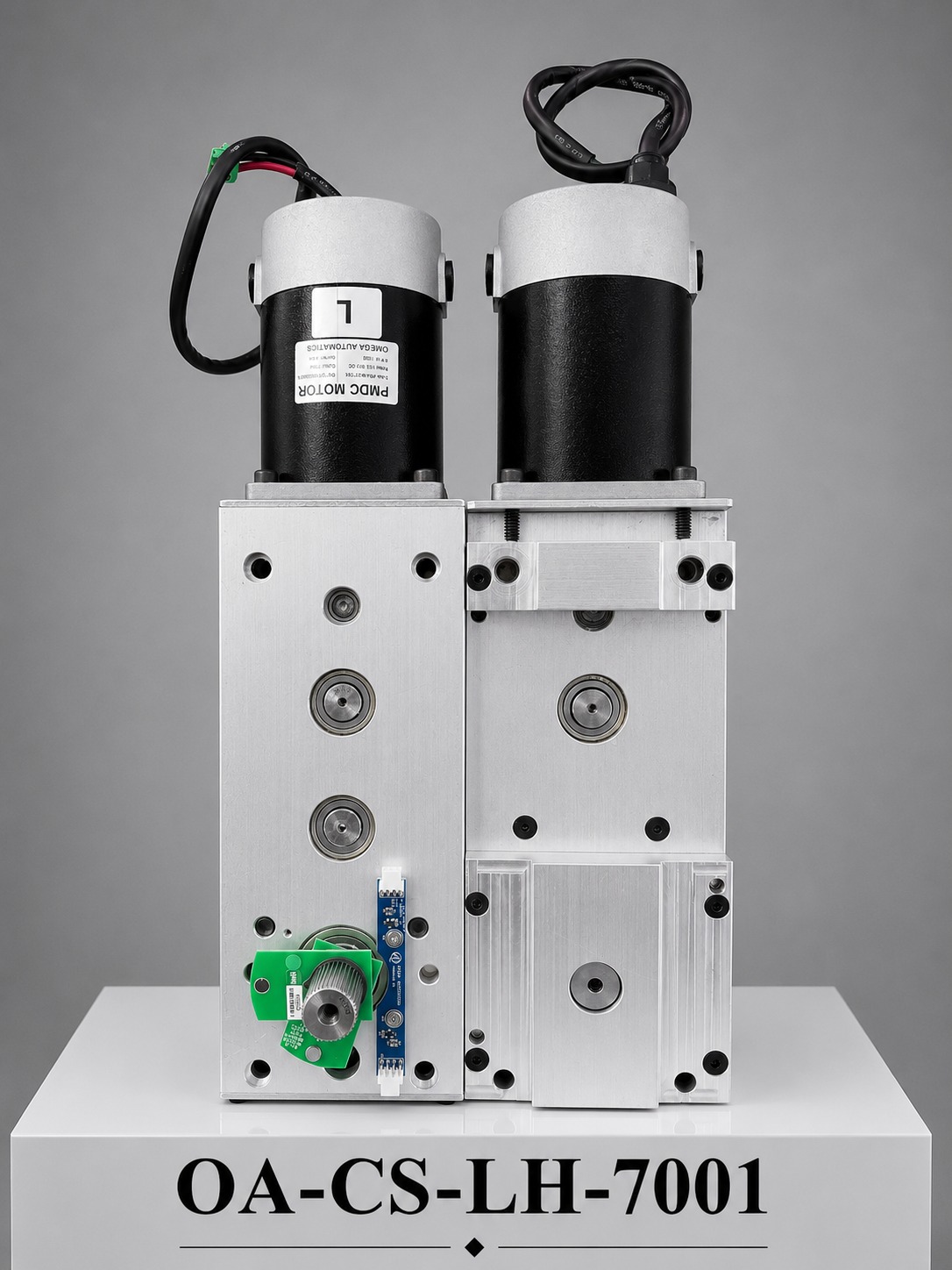

Detailed 360-degree dual perspective of the concealed centre spindle left-hand drive unit with magnetic speed pickup sensors.

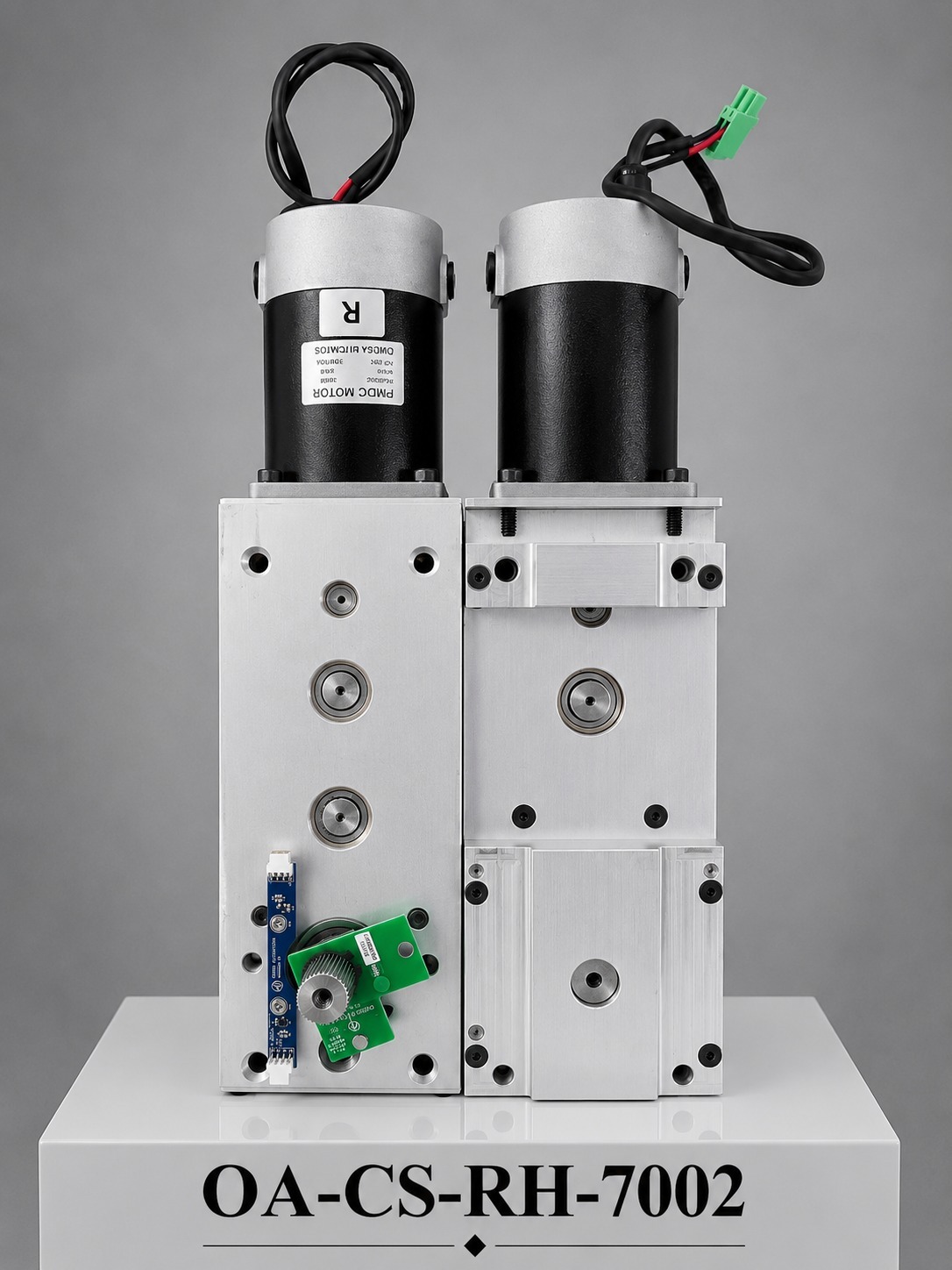

Detailed 360-degree dual perspective of the concealed centre spindle right-hand drive unit with magnetic speed pickup sensors.

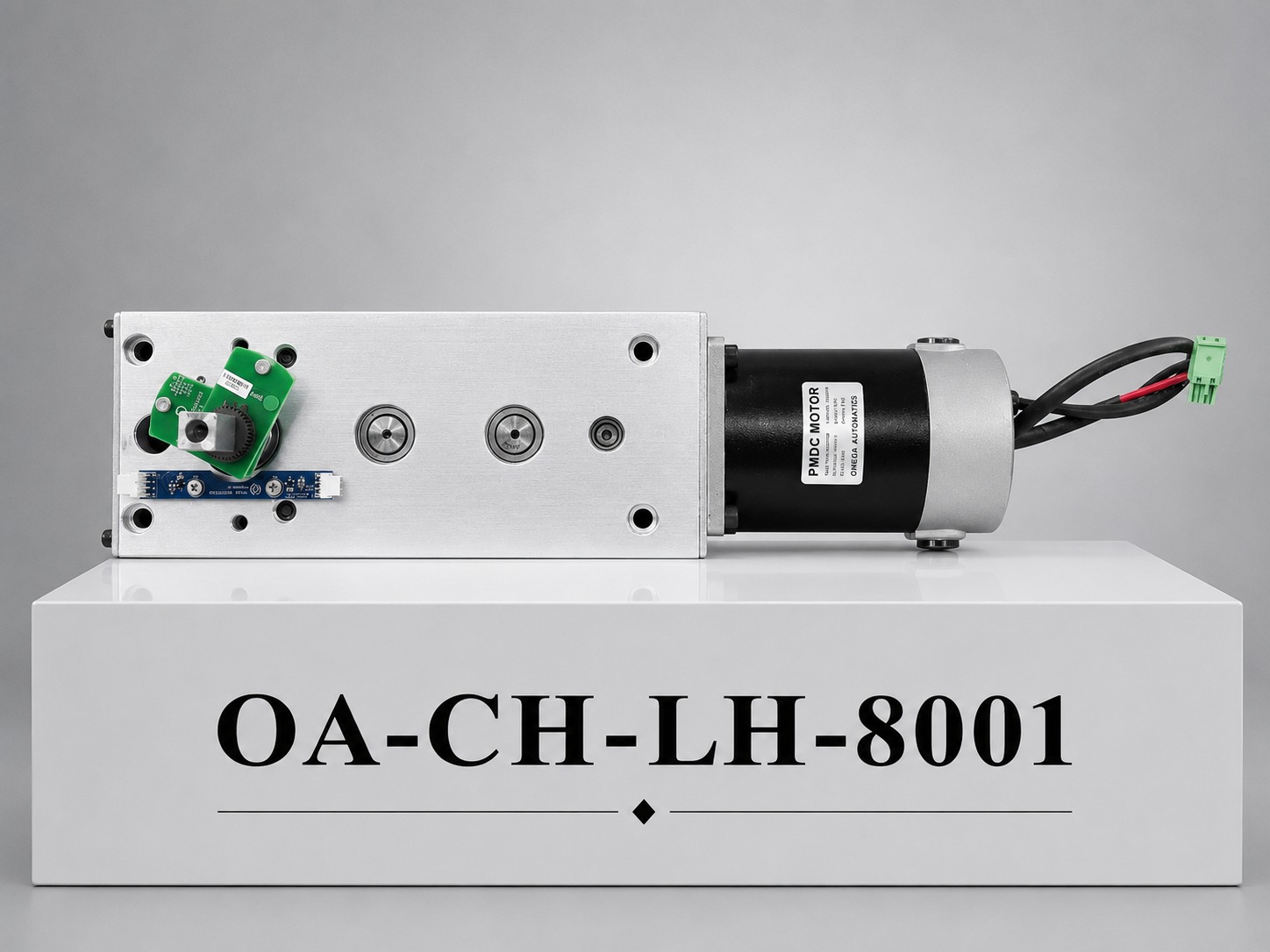

Concealed overhead operator motor with precision square-drive centre hung arbor and limit cam sensor PCB for center-pivoting doors.

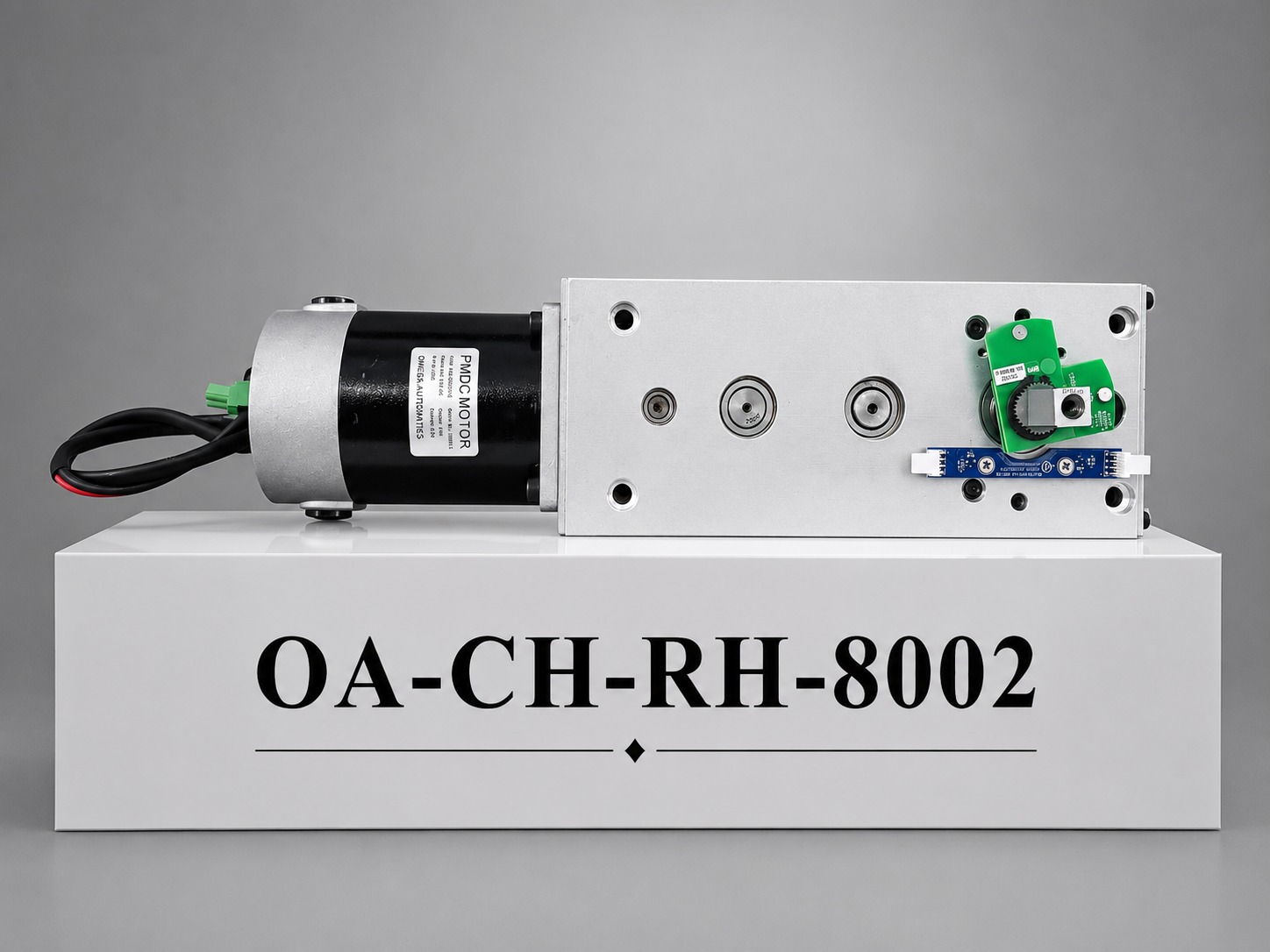

Concealed overhead operator motor with precision square-drive centre hung arbor and limit cam sensor PCB for right-hand center-pivoting doors.

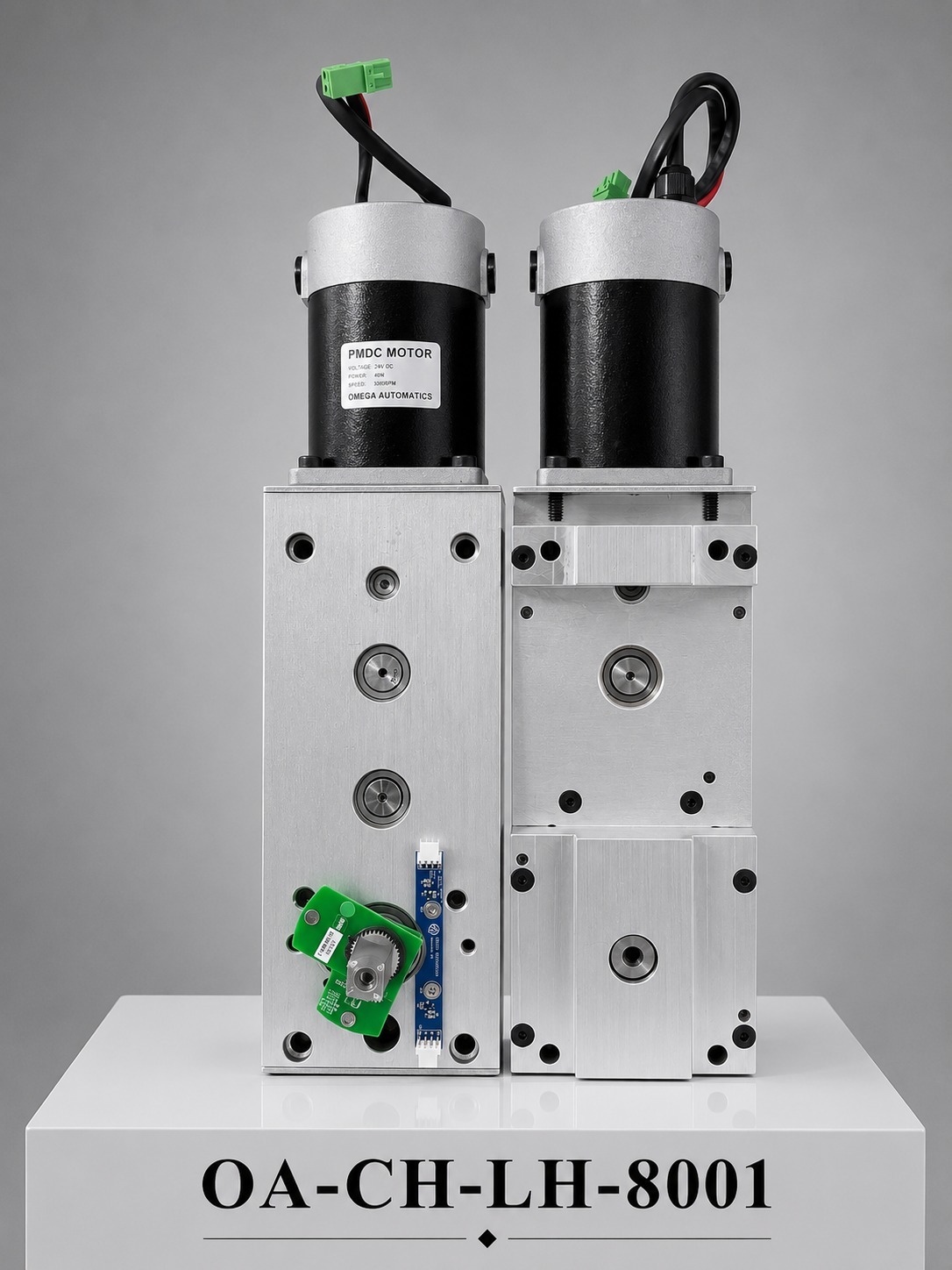

Dual angle presentation of the concealed centre hung left-hand motor and square drive arbor mechanism.

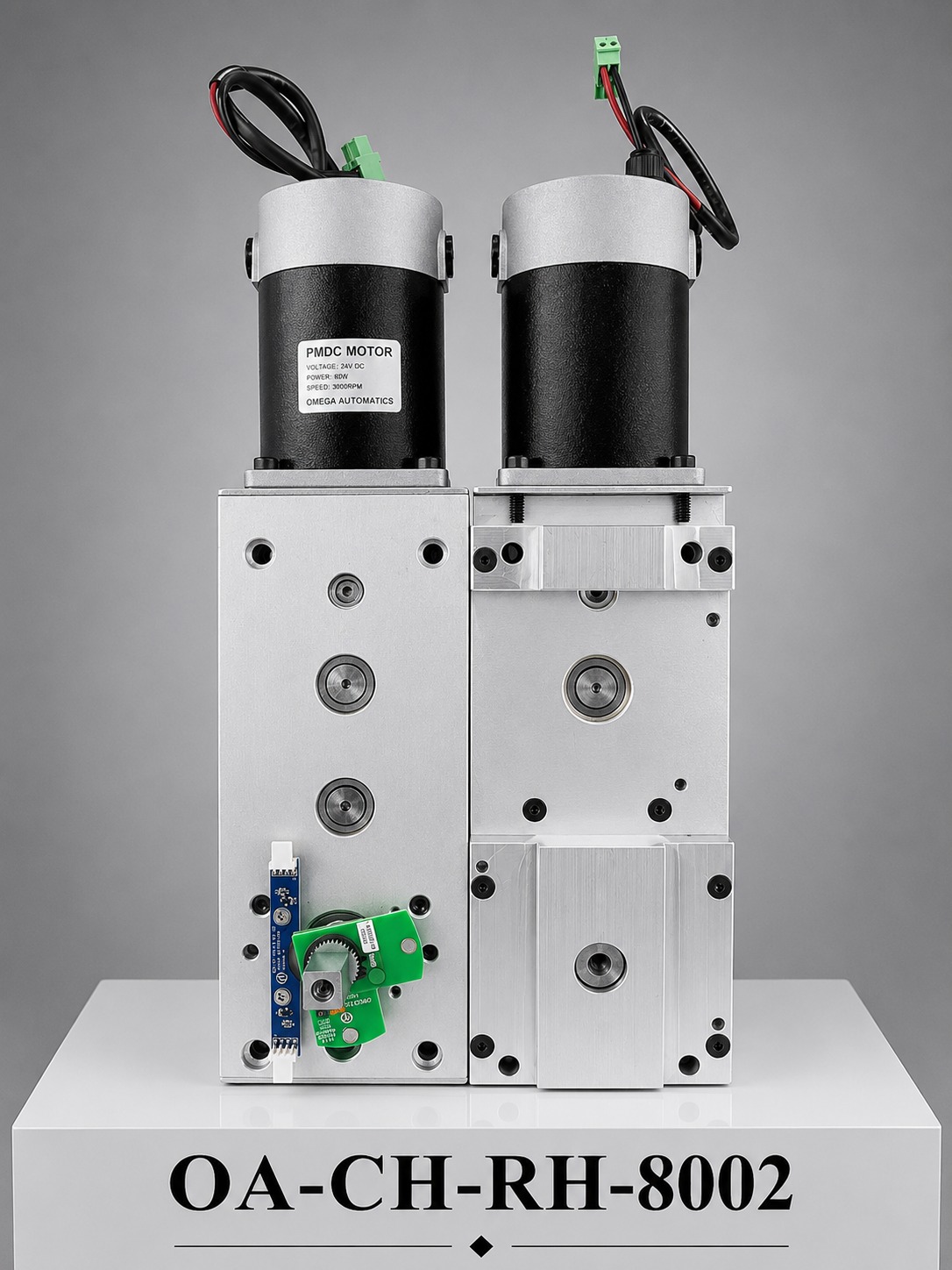

Dual angle presentation of the concealed centre hung right-hand motor and square drive arbor mechanism.

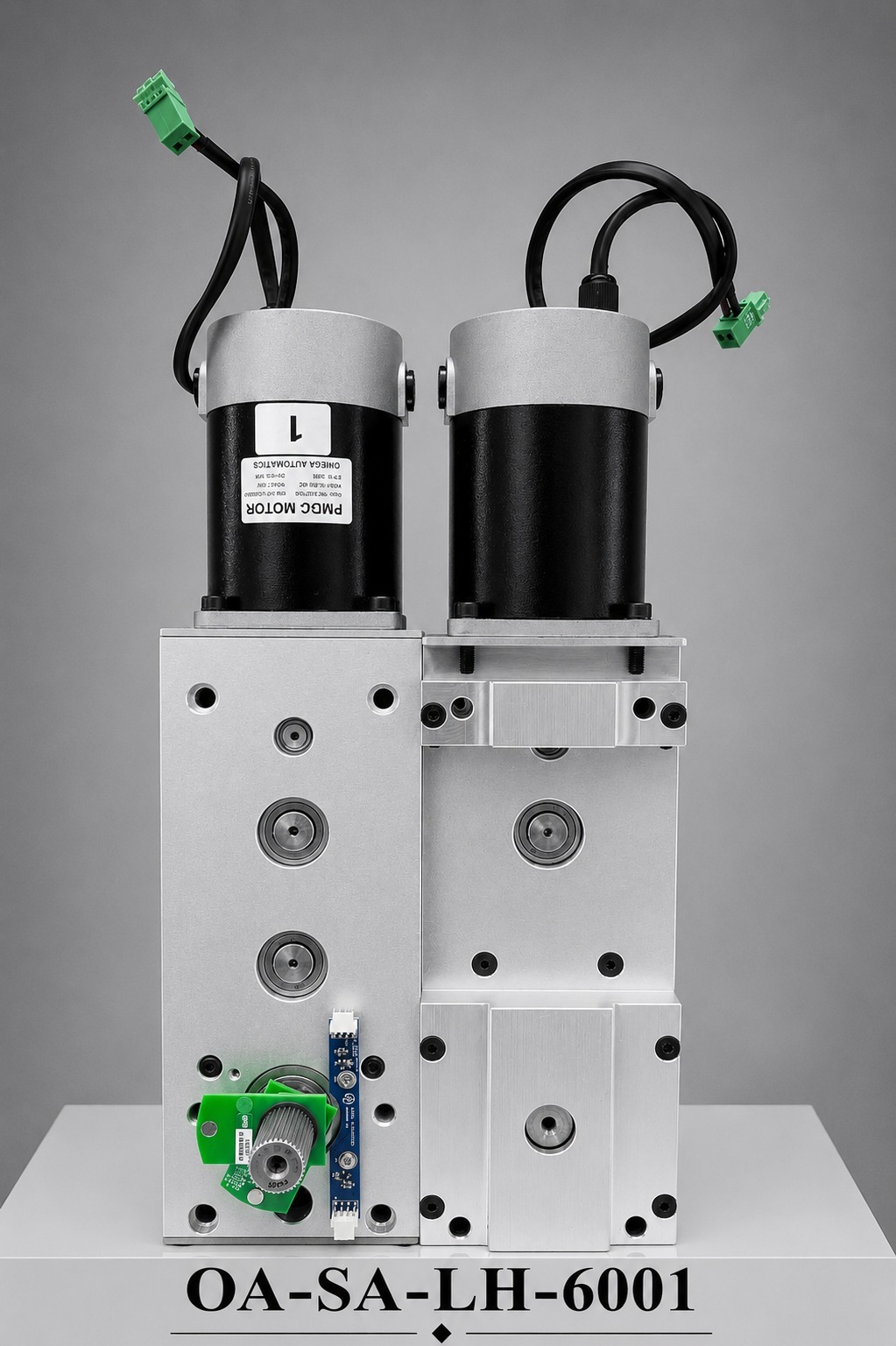

Concealed bottom load operator motor unit specifically geared and configured for surface arm bracket geometry on left hand doors.

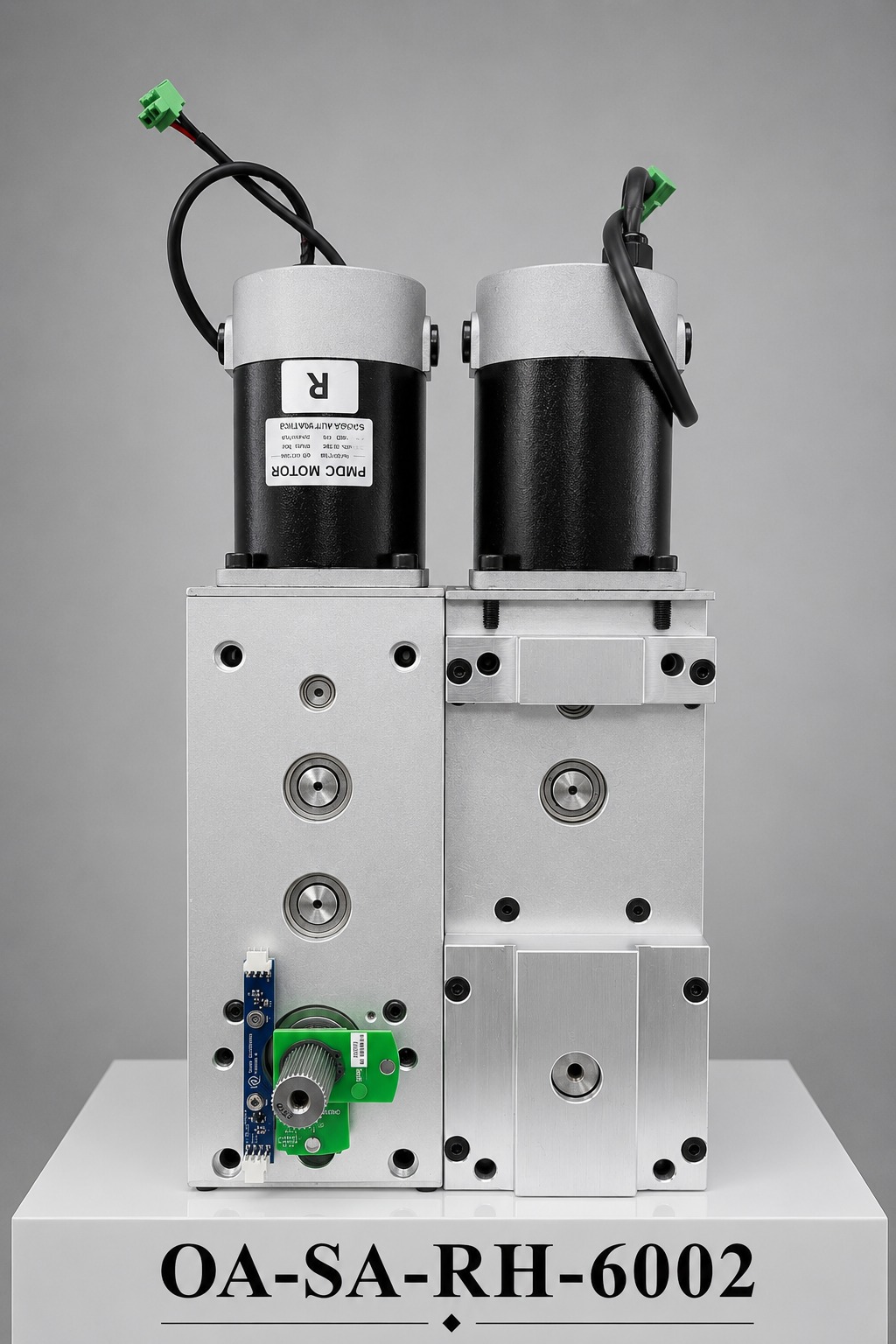

Concealed bottom load operator motor unit specifically geared and configured for surface arm bracket geometry on right hand doors.

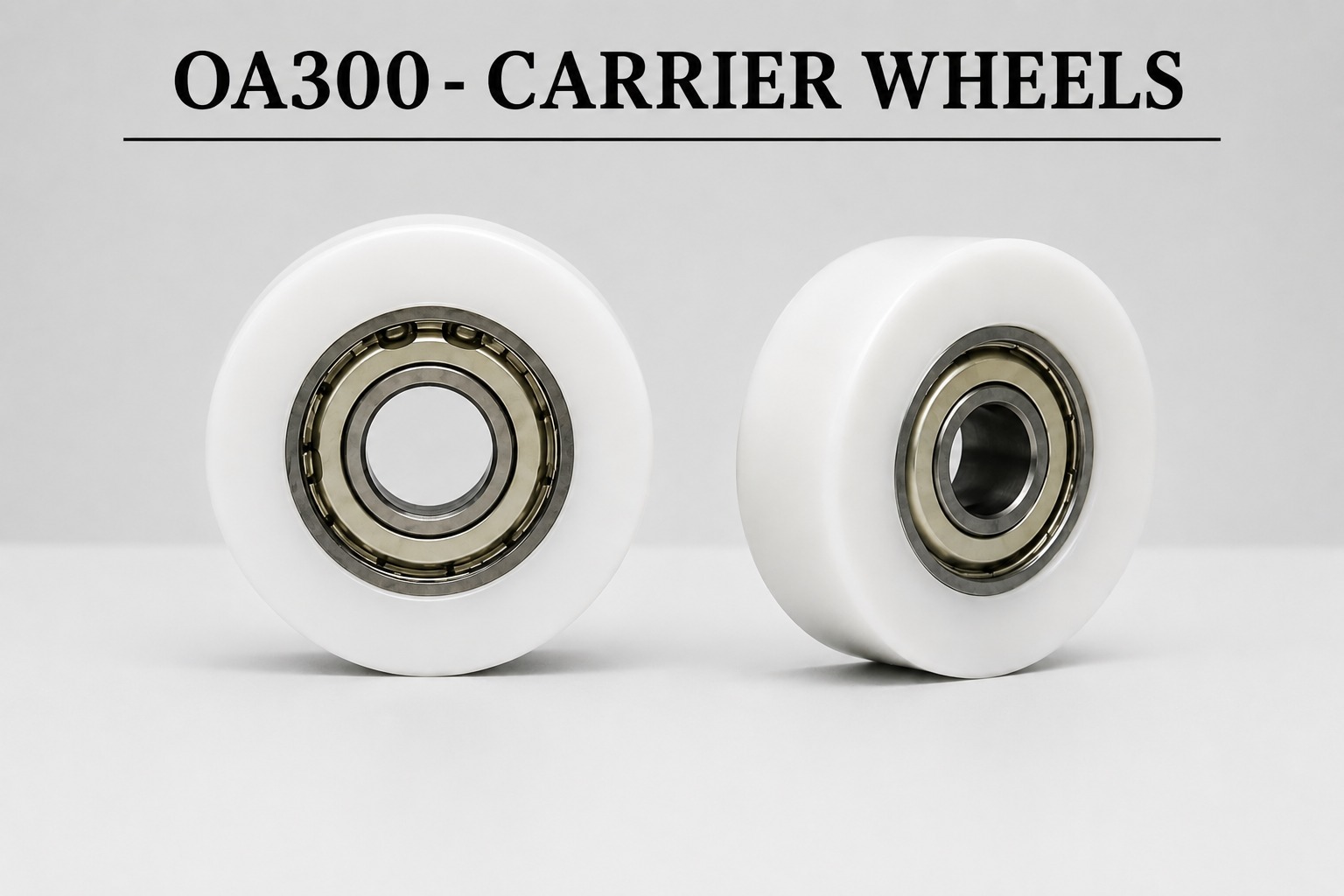

High-capacity, whisper-quiet replacement carrier rollers with dual sealed precision steel ball bearings designed for ultra-smooth sliding panel glide.

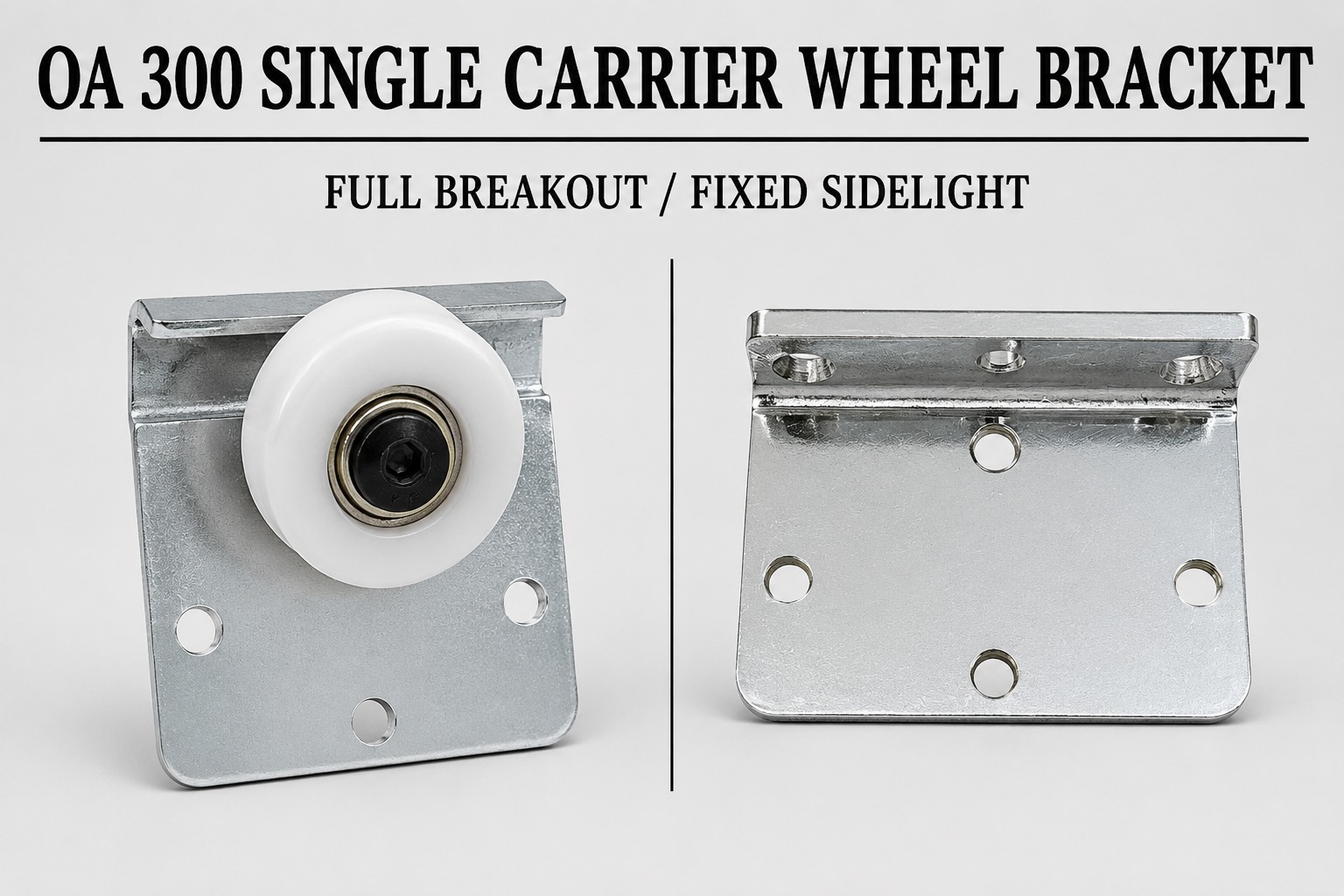

Single-wheel sliding door carrier trolley hanger bracket with mounted low-friction roller wheel, counter-sunk mounting holes, and eccentric height leveling slots.

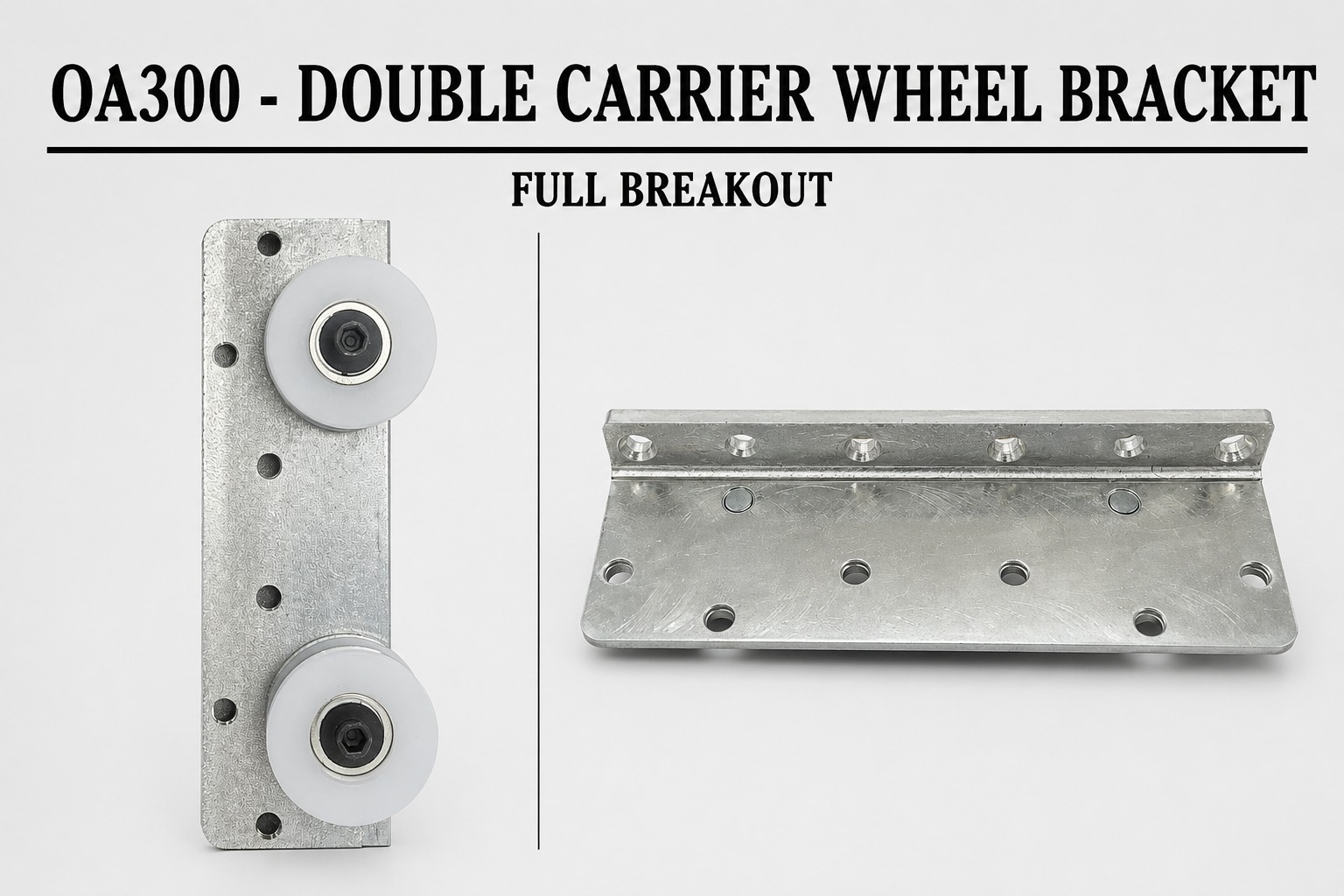

Heavy-duty tandem double-wheel carrier hanger trolley bracket engineered to distribute leaf weight across two precision rollers for effortless glide on heavy glass packages.

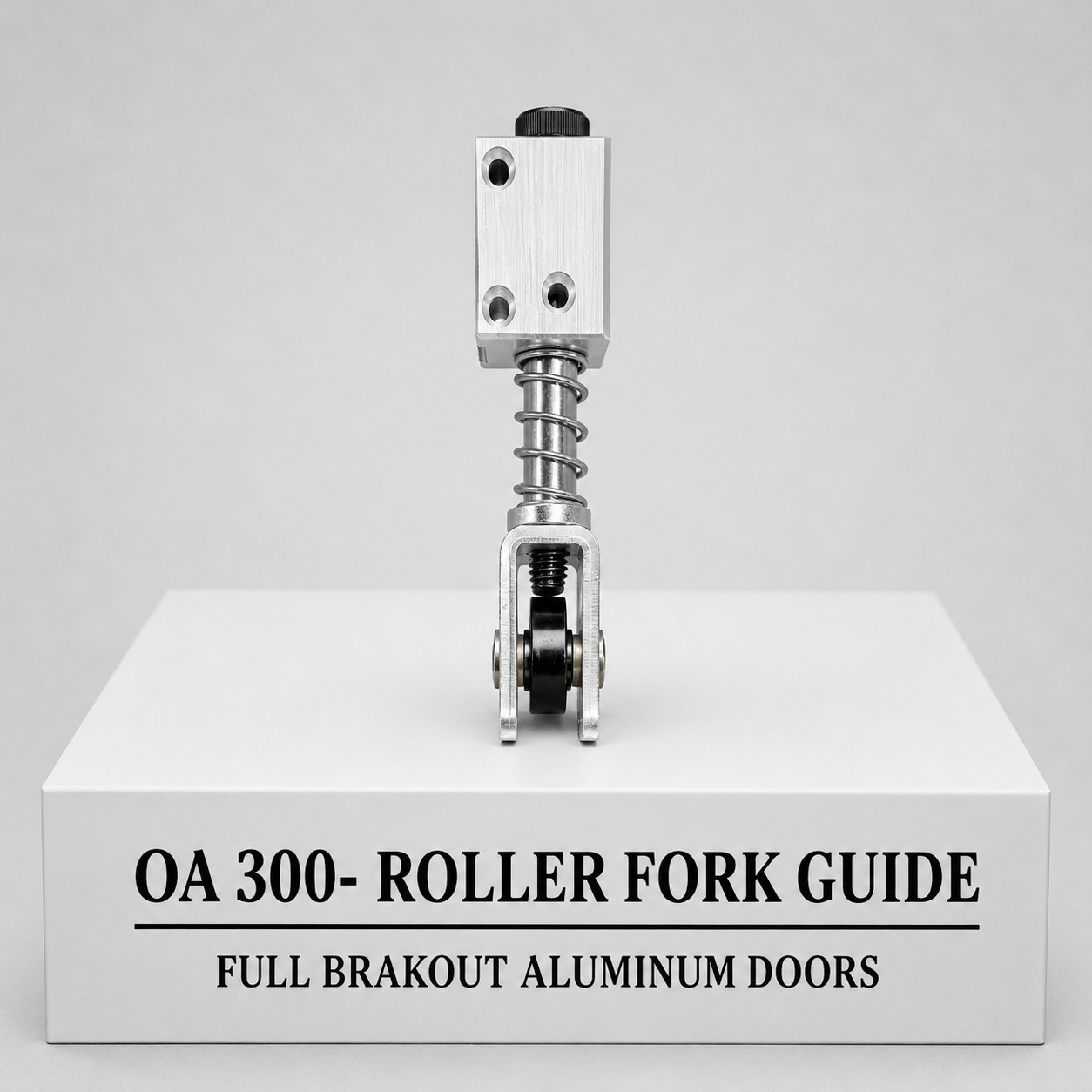

Commercial bottom roller fork guide specifically engineered for bottom rail mortise mounting on full breakout aluminum sliding door panels.

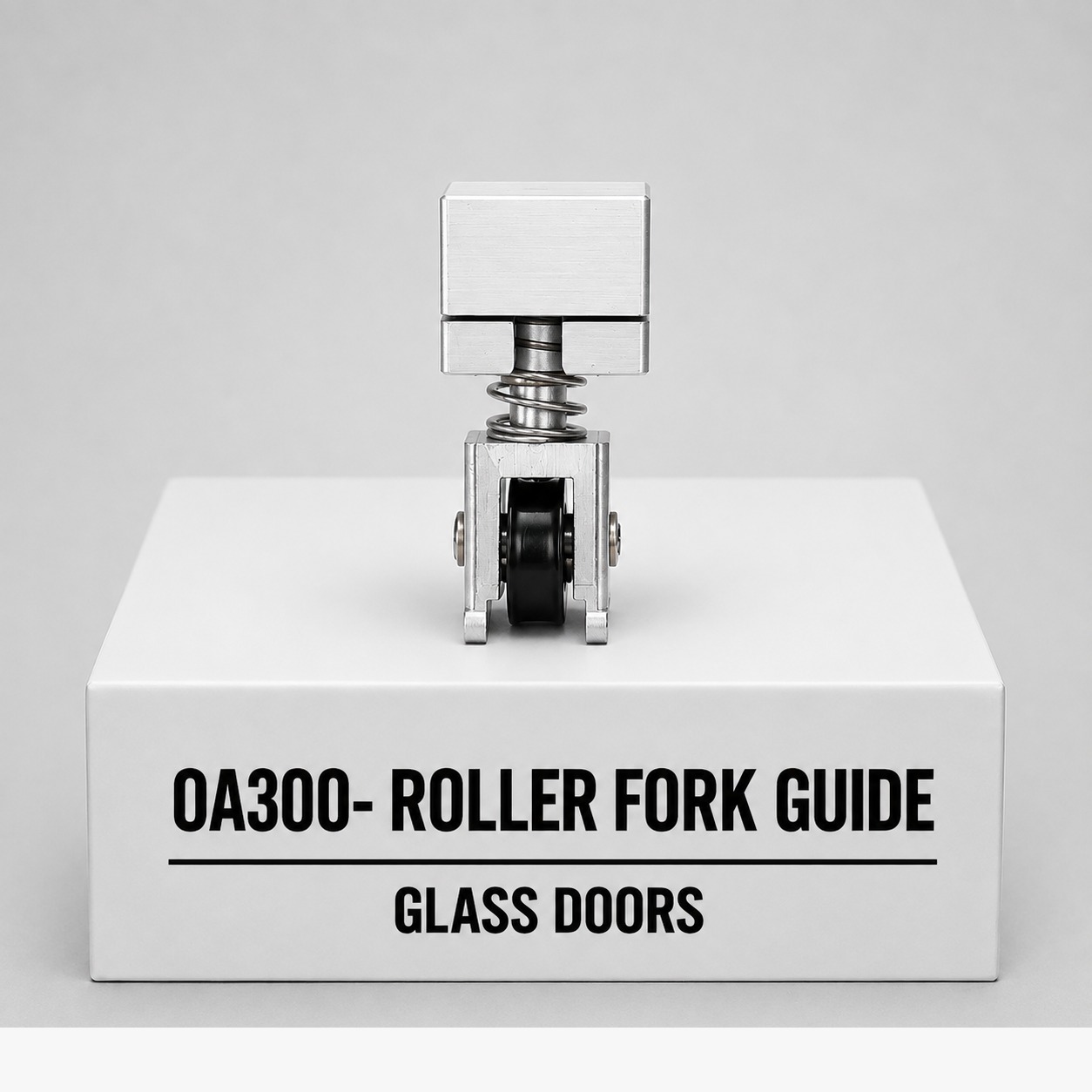

Spring-cushioned bottom guide assembly with precision nylon roller wheel and solid aluminum mounting block for frameless all-glass sliding door panels.

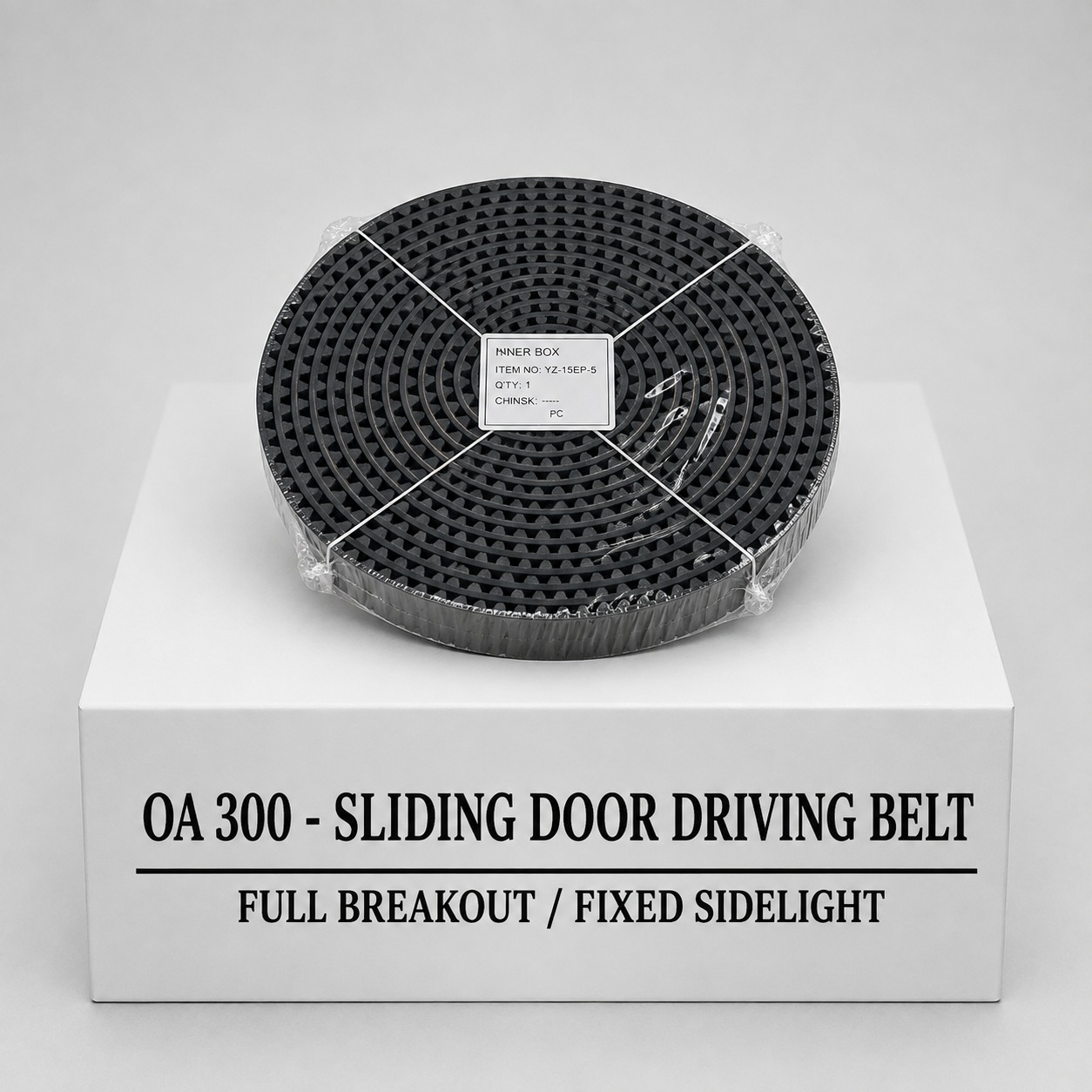

Industrial-grade parabolic toothed synchronous driving belt (Item No: YZ-15EP-5) offering quiet operation, zero slip, and maximum tensile strength under heavy traffic cycles.

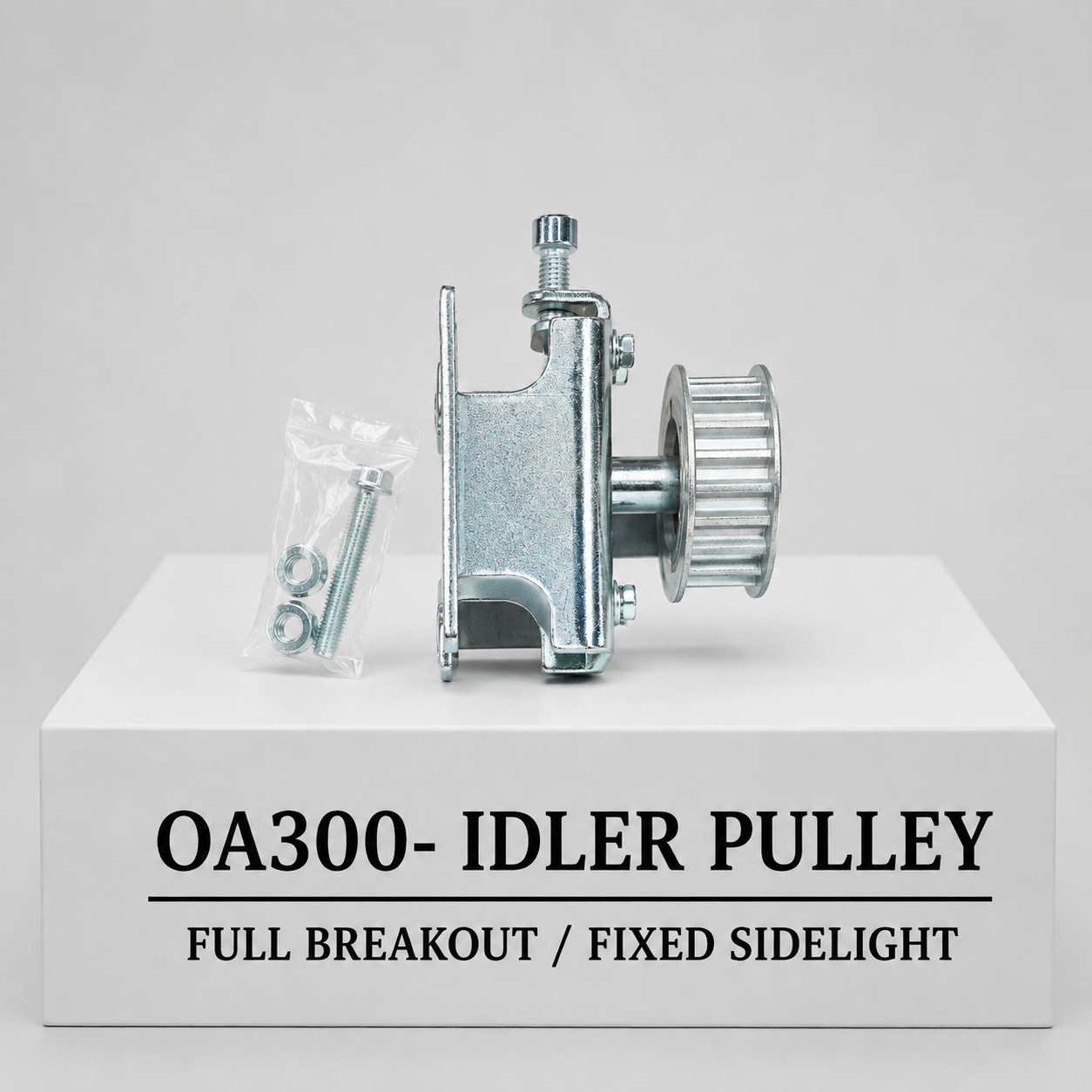

Heavy-gauge header bracket with integrated precision-toothed aluminum idler pulley, dual sealed bearings, and threaded tension adjustment jack screw bolt.

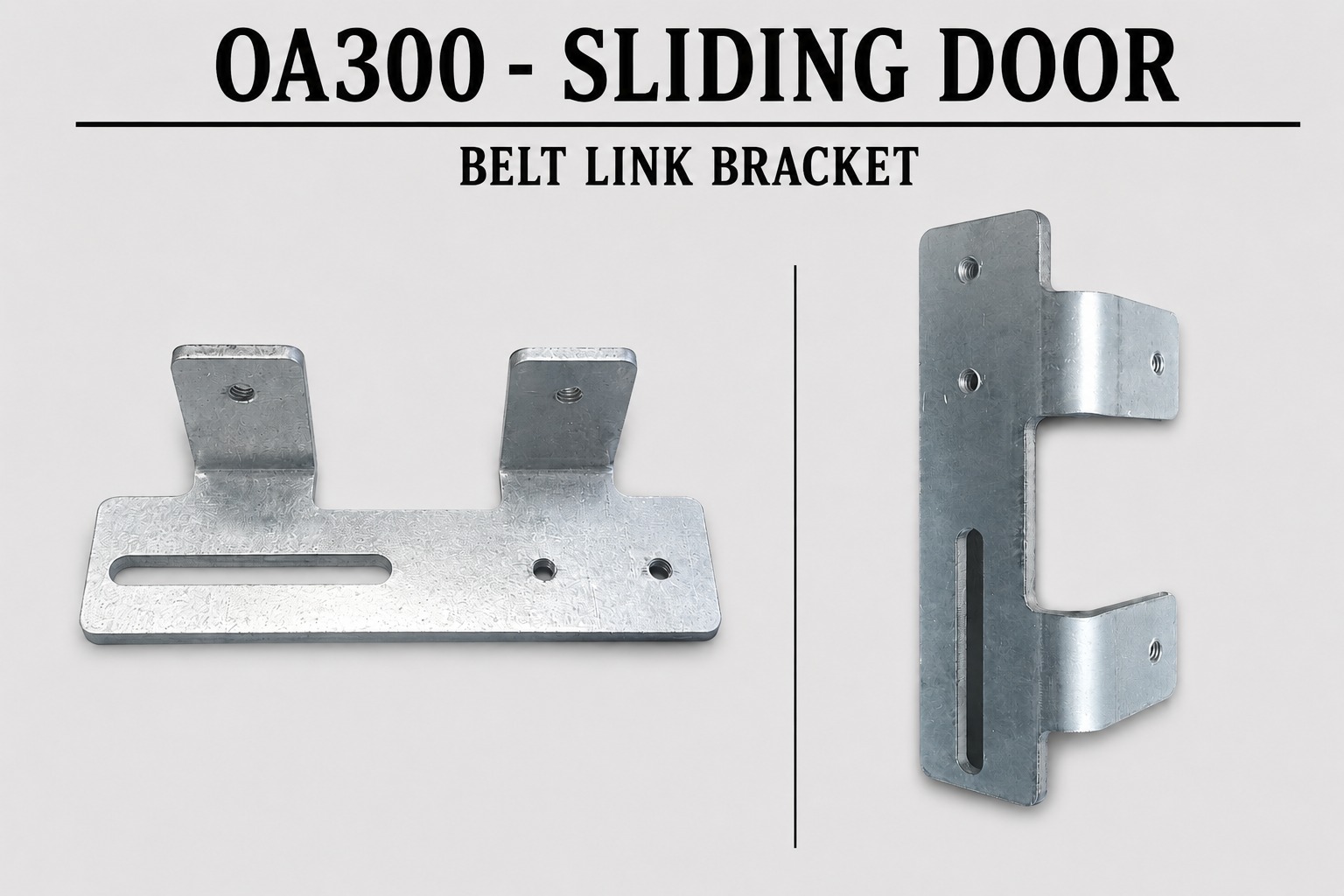

Heavy-gauge formed steel belt connector link bracket with elongated adjustment slot and dual threaded upright carrier attachment flanges.

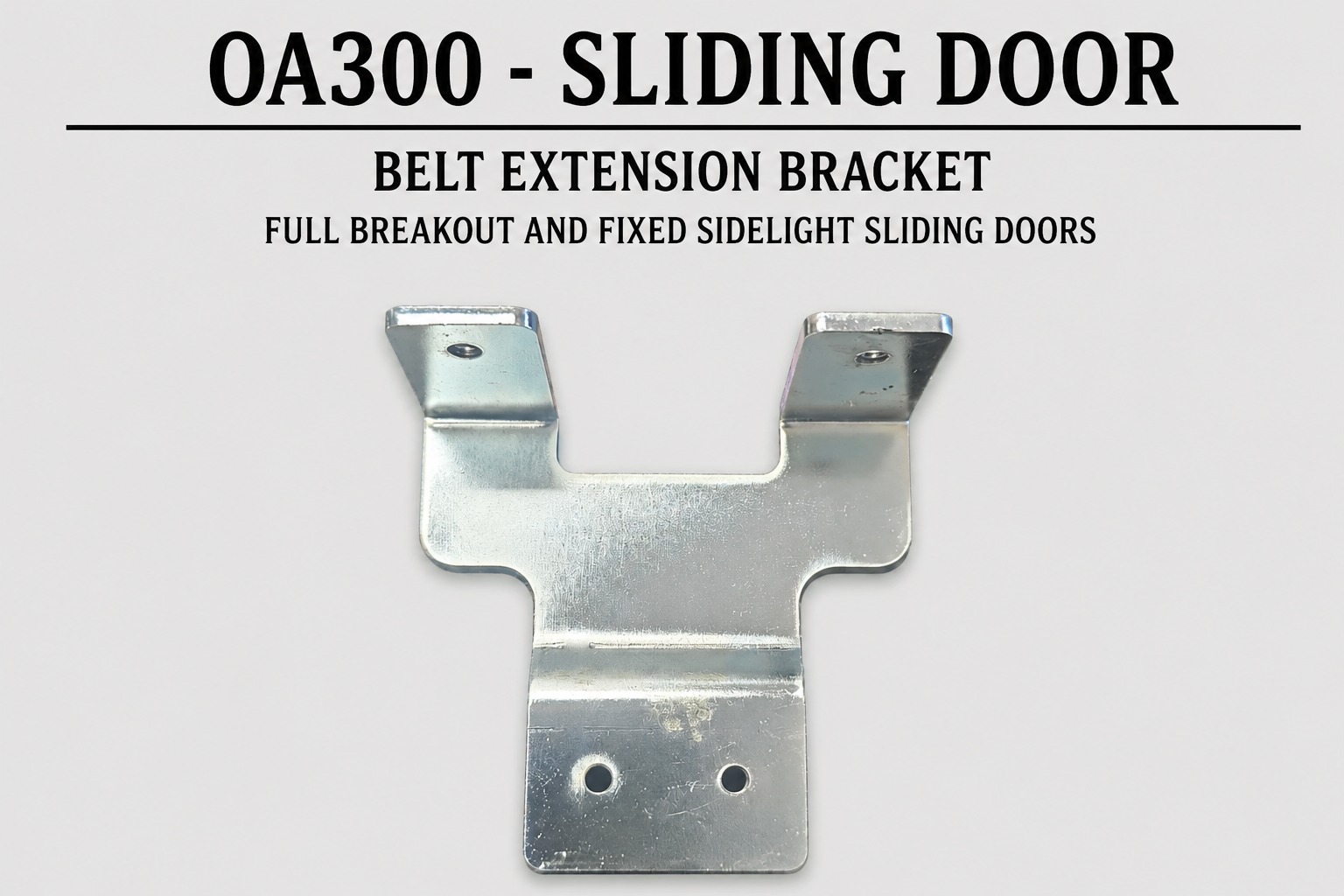

High-strength steel belt extension bracket engineered for proper offset geometry on fixed sidelight and full breakout sliding door panel drive connections.

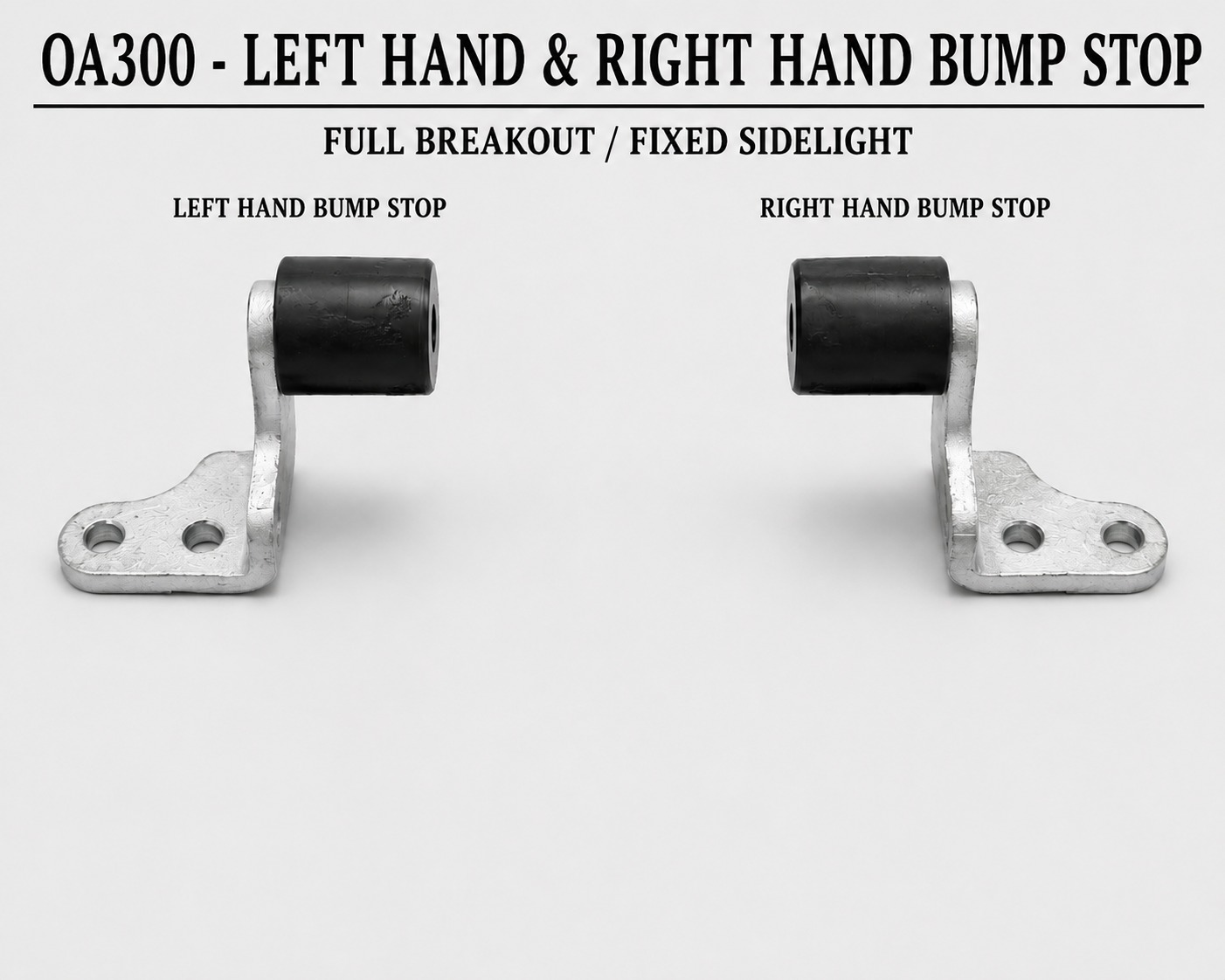

Matched pair of left-hand and right-hand structural header end stop brackets with high-durometer shock absorbing rubber cushions to limit panel travel.

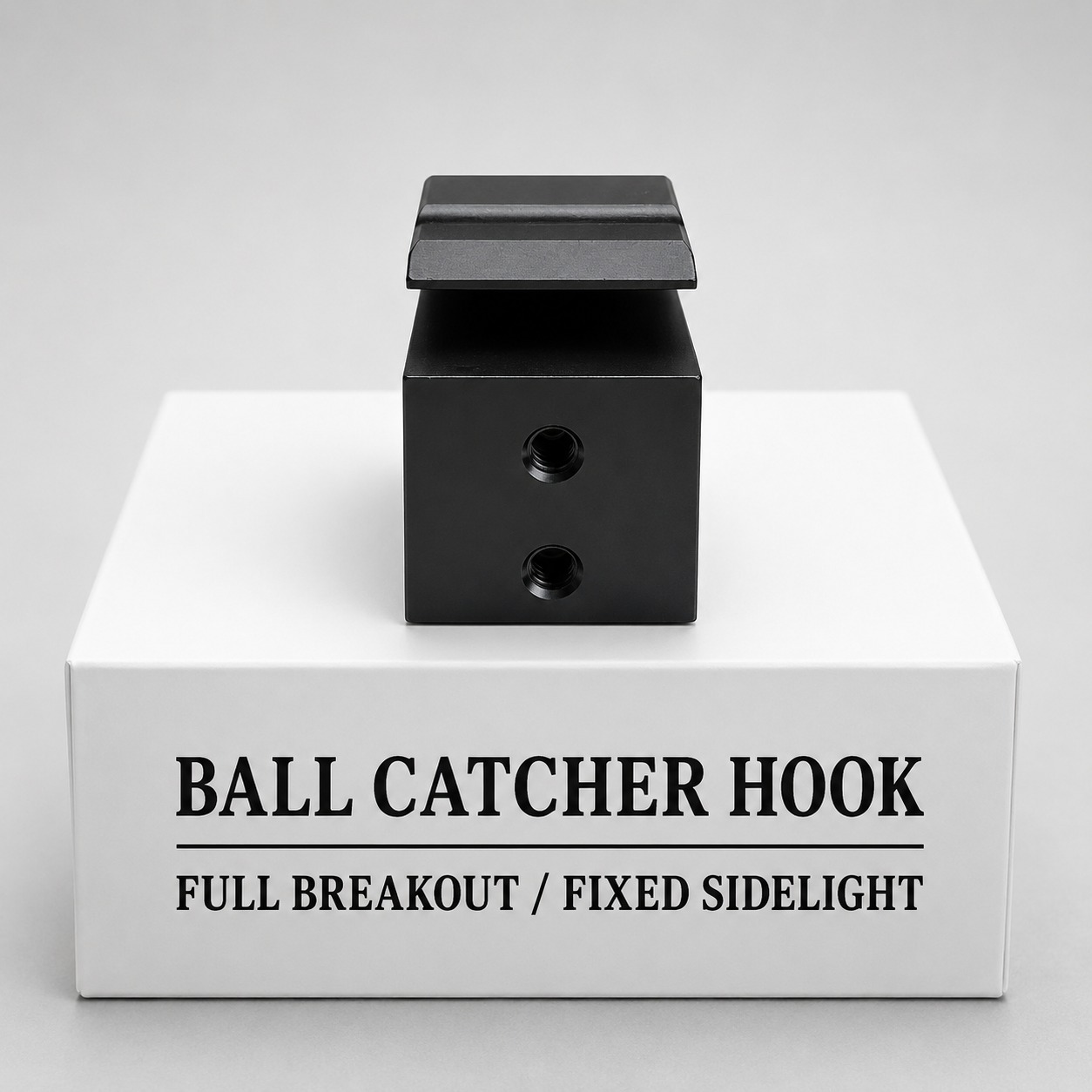

Precision-machined solid aluminum ball catch hook bracket in black anodized finish for positive breakout retention and latching on sliding entrance leaves.

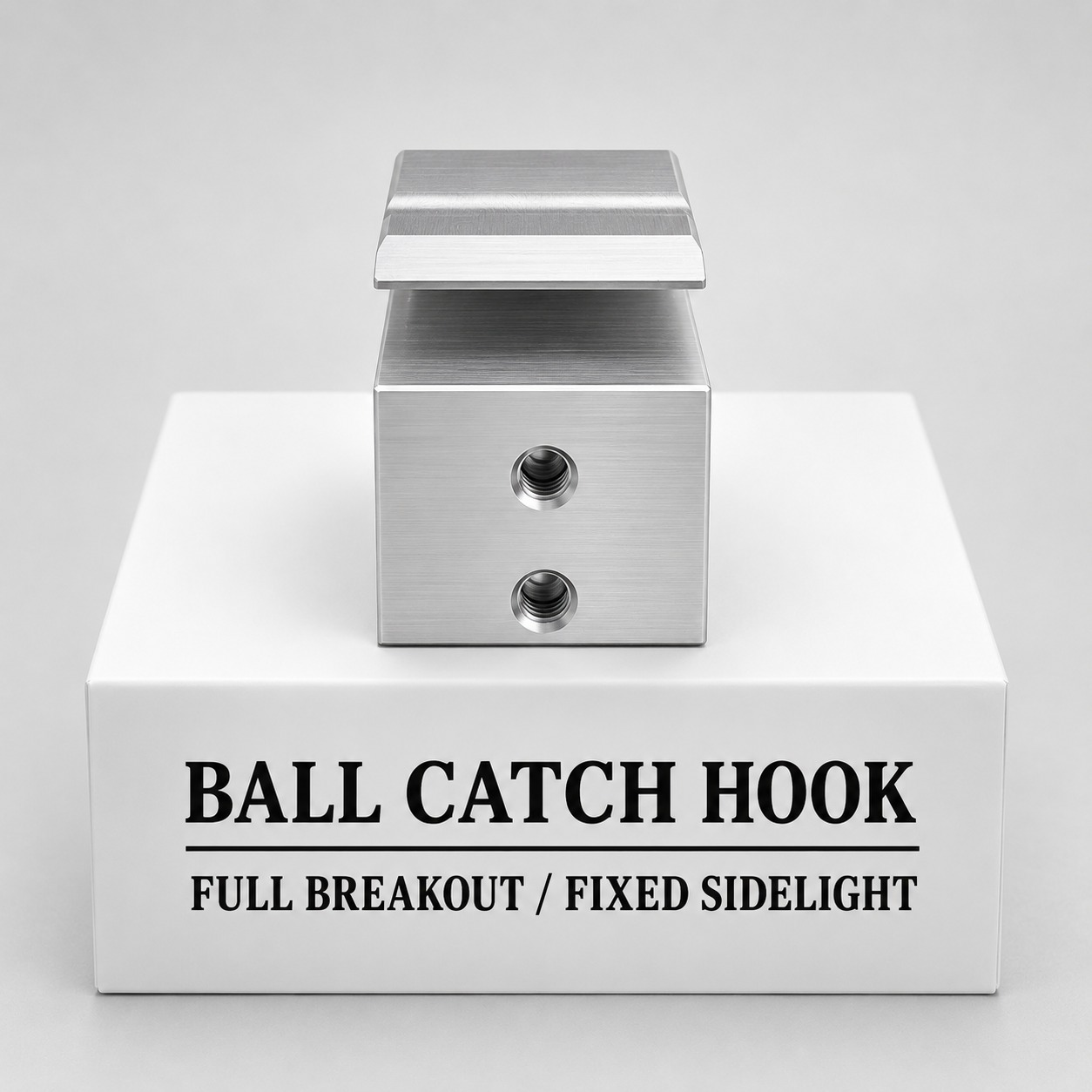

Solid billet aluminum ball catch hook in satin clear finish, ensuring reliable holding pressure and smooth release during emergency breakout.

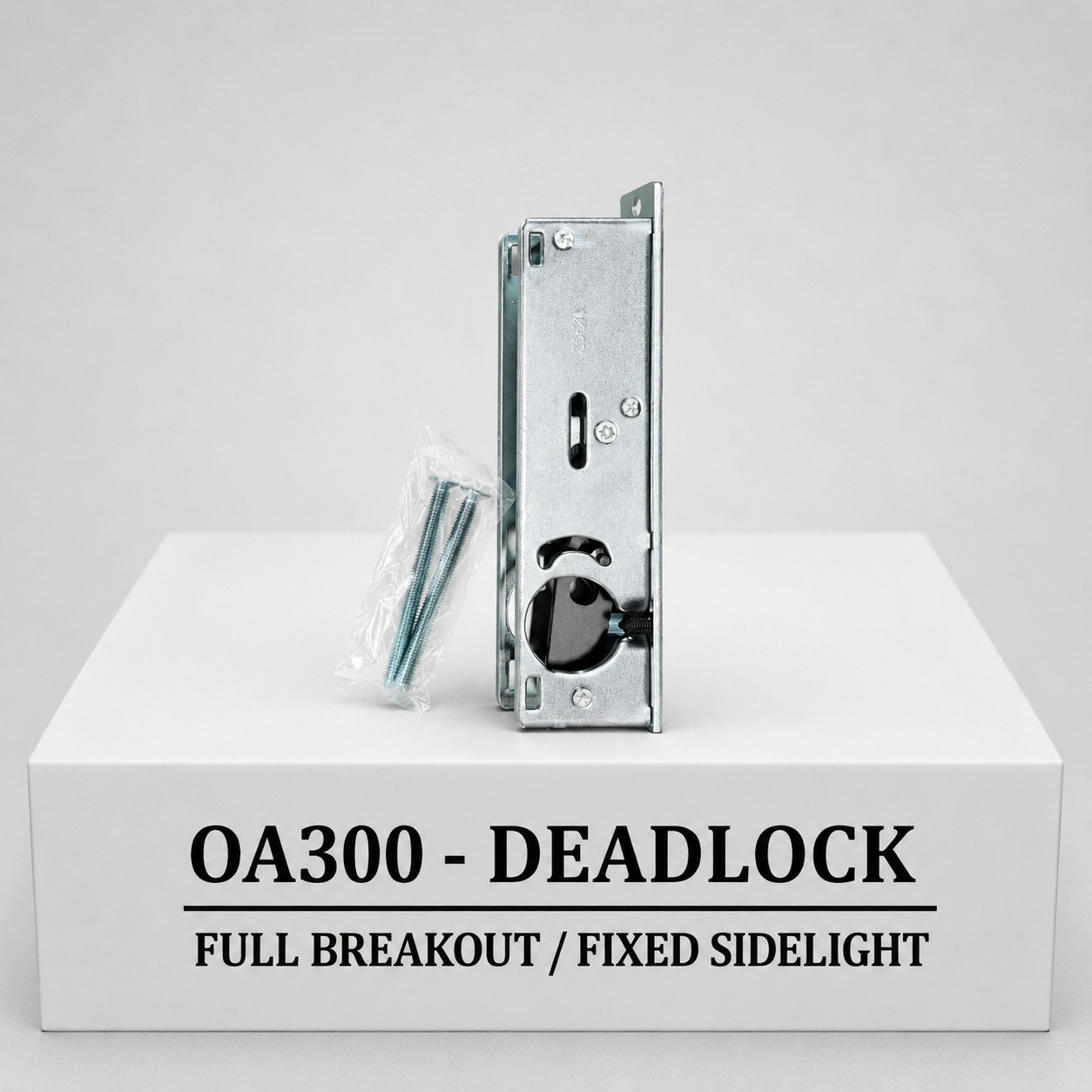

Heavy-duty commercial hook-bolt mortise deadlock casing complete with fixing bolts, accepting standard threaded mortise key and thumb turn cylinders.

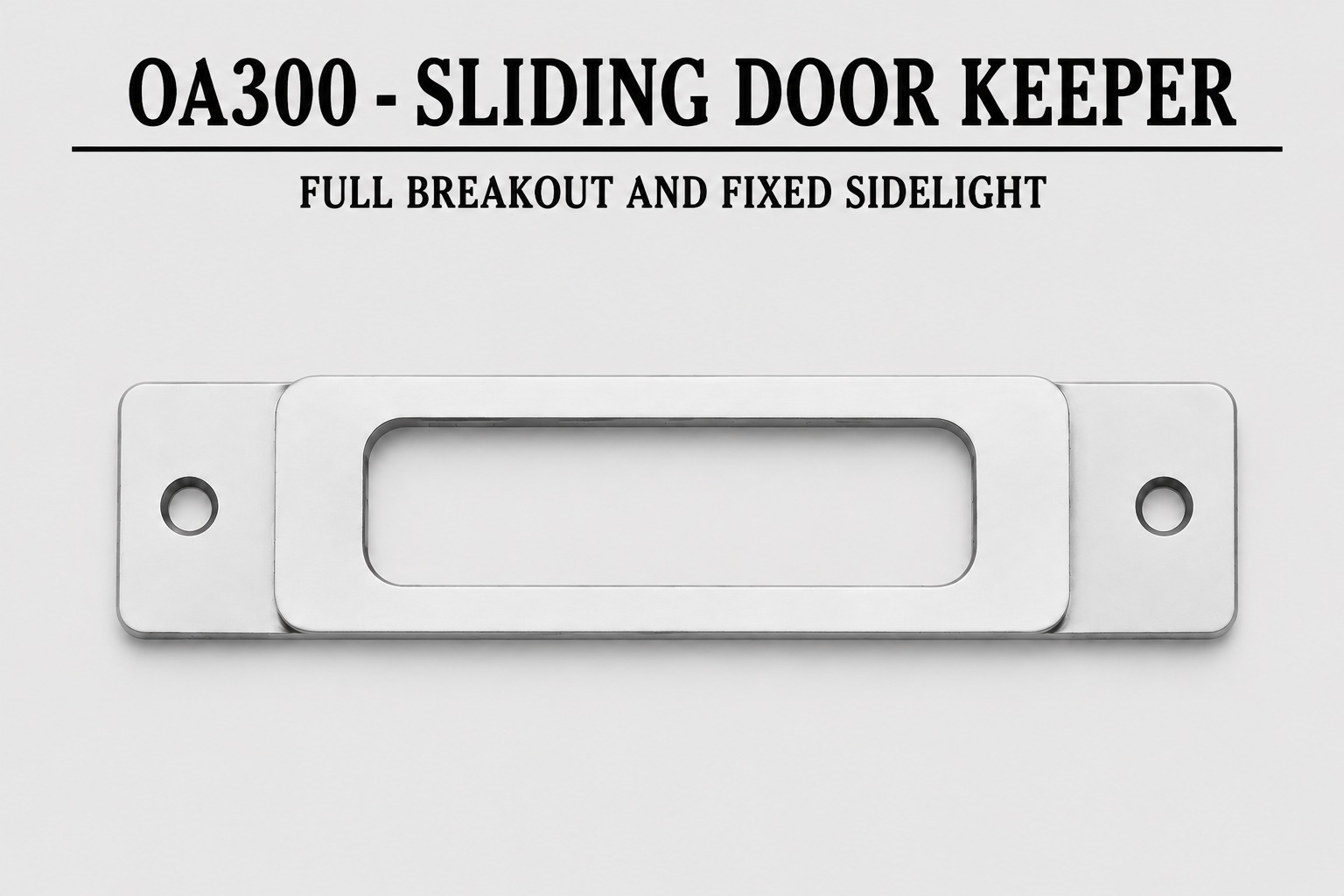

Precision-cut architectural stainless steel strike keeper plate designed for flush or surface door stile mounting to engage OA300 mortise hook deadlocks.

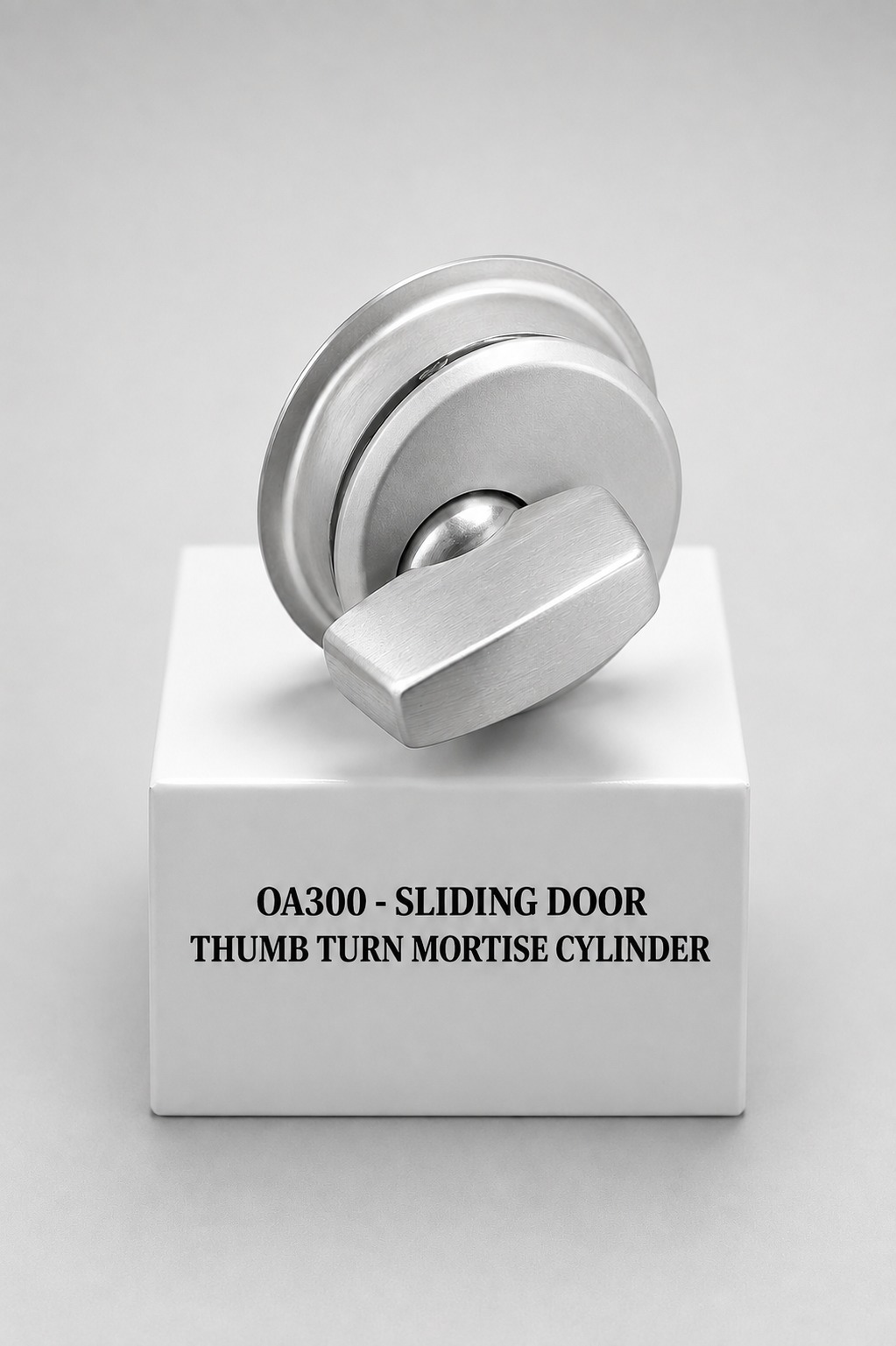

Heavy-duty interior thumb turn mortise cylinder designed for quick egress locking and secure keyless manual operation on OA300 automatic sliding door systems.

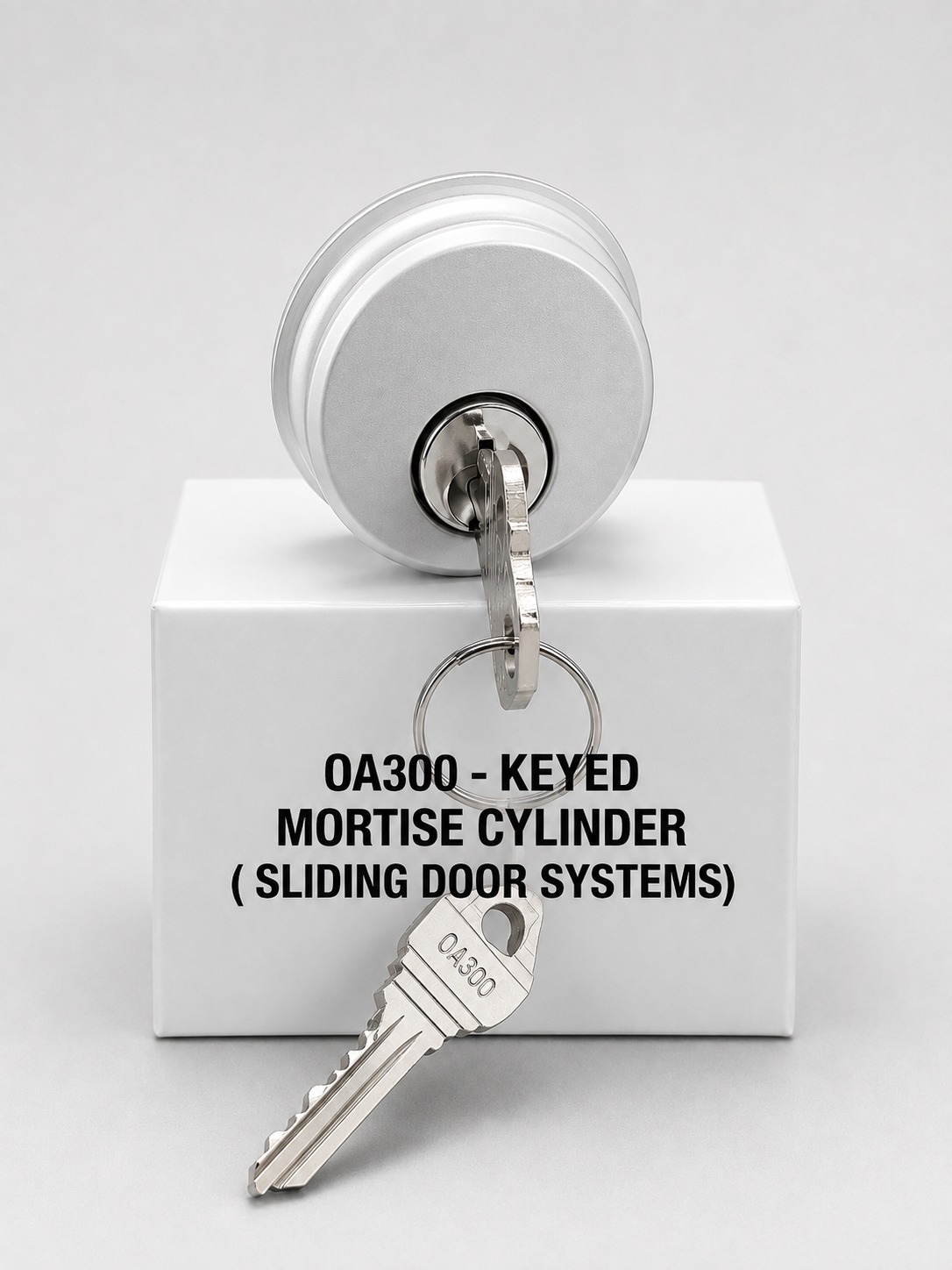

High-security 5/6-pin keyed exterior mortise cylinder supplied with two precision keys, engineered specifically for OA300 sliding door hook deadlocks.

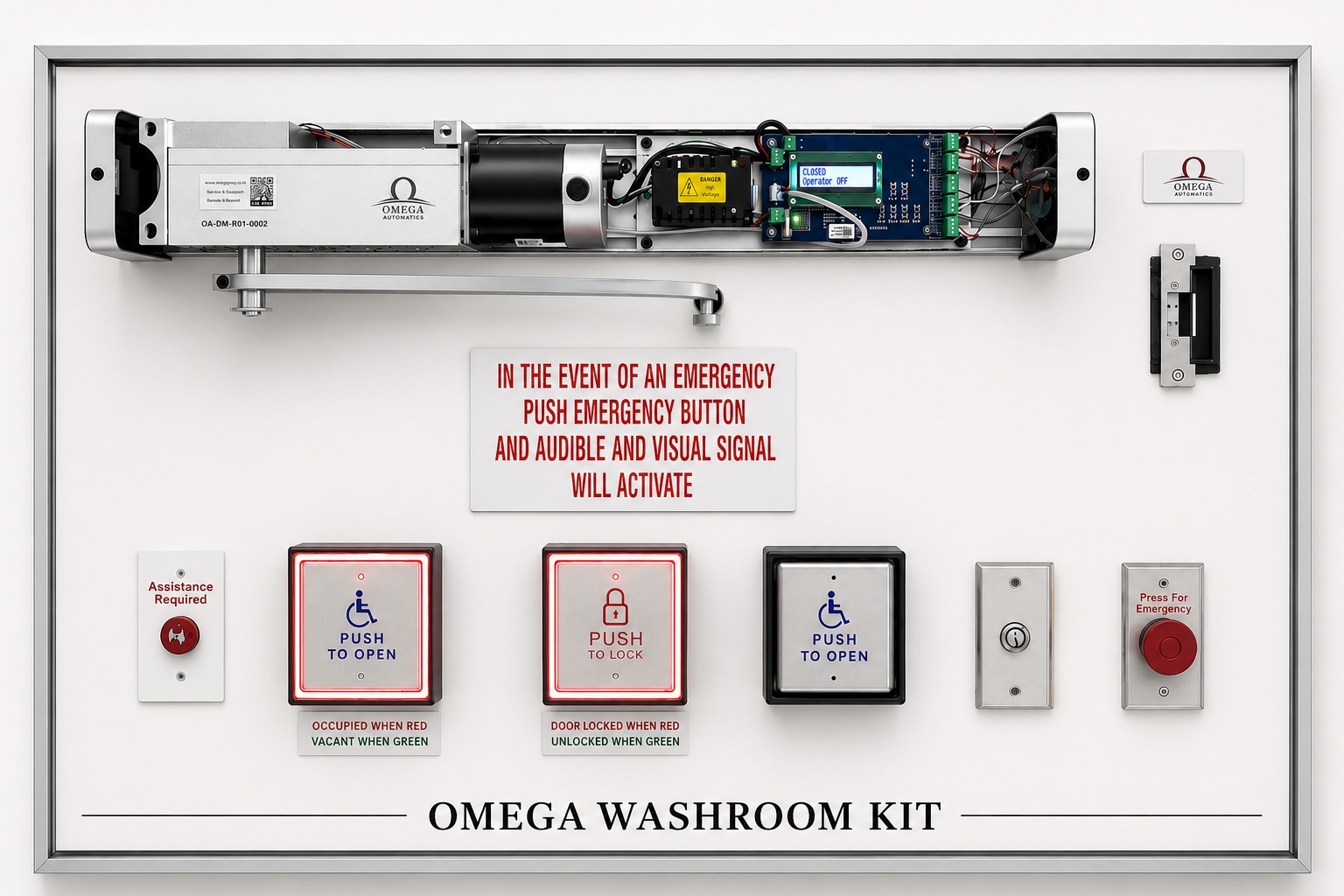

Complete demonstration board and pre-wired master kit featuring automatic operator interface, backlit Push-to-Open & Push-to-Lock push plates, emergency distress button with audio/visual exterior alarm, and fail-secure electric strike integration.
Cross-reference accessory part numbers with your existing Omega automatic door operator system model to ensure 100% factory fit.
| Part Number | Component Description | Parent Operator Series | Standard Finish / Spec | Availability |
|---|---|---|---|---|
| OA-Z ARM-CLEAR | Surface Mount Push Z-Arm Kit | OA100-SM Series (Push) | Clear Anodized (628) | In Stock (Same Day) |
| OA-Z ARM-BLACK | Surface Mount Push Z-Arm Kit | OA100-SM Series (Push) | Black Anodized (711) | In Stock (Same Day) |
| OA-SW-CONTROL BOARD | Microprocessor Swing Controller & Power Supply | OA100-SM & OA100-BL Series | Integrated 24VDC / Backlit LCD | In Stock (Same Day) |
| OA-BL-CS-ARM-BL | Bottom Load Centre Spindle Concealed Arm Kit | OA100-BL-CS Series | Architectural Black | In Stock (Same Day) |
| OA-SM-LH-5001 | Surface Mount Left Hand Motor & Gearbox | OA100-SM Left Hand | 1/3 HP 24VDC PMDC | In Stock (Same Day) |
| OA-SM-RH-5002 | Surface Mount Right Hand Motor & Gearbox | OA100-SM Right Hand | 1/3 HP 24VDC PMDC | In Stock (Same Day) |
| OA-SM-XP-LH-4001 | Extra Power (XP) Left Hand Motor with Optical Encoder | OA100-SM-XP Series | High Torque Power Close | In Stock (Same Day) |
| OA-SM-XP-RH-4002 | Extra Power (XP) Right Hand Motor with Optical Encoder | OA100-SM-XP Series | High Torque Power Close | In Stock (Same Day) |
| OA-CS-LH-7001 | Bottom Load Centre Spindle LH Motor Assembly | OA100-BL-CS Series | Splined Concealed Pinion | In Stock (1-2 Days) |
| OA-CS-RH-7002 | Bottom Load Centre Spindle RH Motor Assembly | OA100-BL-CS Series | Splined Concealed Pinion | In Stock (1-2 Days) |
| OA-CH-LH-8001 | Bottom Load Centre Hung LH Motor Assembly | OA100-BL-CH Series | Square Spindle Drive | In Stock (1-2 Days) |
| OA-CH-RH-8002 | Bottom Load Centre Hung RH Motor Assembly | OA100-BL-CH Series | Square Spindle Drive | In Stock (1-2 Days) |
| OA-SA-LH-6001 | Bottom Load Surface Arm LH Motor Assembly | OA100-BL-SA Series | Concealed Surface Arm Pinion | In Stock (1-2 Days) |
| OA-SA-RH-6002 | Bottom Load Surface Arm RH Motor Assembly | OA100-BL-SA Series | Concealed Surface Arm Pinion | In Stock (1-2 Days) |
| OA300-SLDR-MOTOR | Sliding Door Brushless Servo Motor & Hypoid Gear | OA300 Sliding Series | DC Brushless / Hypoid Reducer | In Stock (Same Day) |
| OA300-SLDR CONTROL | Sliding Door Digital Multi-function Logic Controller | OA300 Sliding Series | 20-Torque Settings / Multi-Sensor | In Stock (Same Day) |
| OA300-POWER SUPPLY | Master Power Supply Loom & Rocker Switch Assembly | OA300 Sliding Series | 115/230VAC 6-Pin Terminal | In Stock (Same Day) |
| CM 160/21 (OPTEX) | Active Infrared Fixed Sidelight Presence Sensor | OA300 Sidelight & Breakout | 12-24VAC / 12-30VDC Relay Output | In Stock (Same Day) |
| OPTEX SLDR (2-OUT) | Dual Output Activation & Threshold Presence Sensor | OA300 Full Breakout & Sidelight | ANSI A156.10 / EN 16005 Black | In Stock (Same Day) |
| OA300-CARRIER WHEELS | Precision Sliding Panel Carrier Wheels (Pair) | OA300 Single & Double Trolleys | UHMW Delrin / Dual Sealed Bearings | In Stock (Same Day) |
| OA300-SNGL CARRIER | Single Carrier Wheel Hanger Bracket Assembly | OA300 Sliding Door Panels | 4mm Zinc Plated Heavy Steel | In Stock (Same Day) |
| OA300-DBL CARRIER | Tandem Double Carrier Wheel Bracket Assembly | OA300 Heavy Sliding Panels | Dual UHMW Rollers / 400 lbs Rating | In Stock (Same Day) |
| OA300-DRIVING BELT | Toothed Synchronous Driving Belt (YZ-15EP-5) | OA300 Sliding Drive Package | 15mm Reinforced Fiberglass Core | In Stock (Same Day) |
| OA300-IDLER PULLEY | Belt Idler Tension Pulley & Adjustment Assembly | OA300 Header Track Assembly | Machined Aluminum & Jack Bolt | In Stock (Same Day) |
| OA300-DEADLOCK | Hook-Bolt Commercial Mortise Deadlock Body | OA300 Sliding Panels | Heavy Gauge Steel Case | In Stock (Same Day) |
| OA300-DOOR KEEPER | Sliding Door Stainless Steel Lock Keeper Strike | OA300 Door Stiles & Jambs | 304 Satin Stainless Steel | In Stock (Same Day) |
| OA300-TT-CYLINDER | Interior Thumb Turn Mortise Cylinder | OA300 Sliding Locks | Satin Chrome (US26D) | In Stock (Same Day) |
| OA300-KEY-CYLINDER | Exterior Keyed 5/6-Pin Mortise Cylinder with Keys | OA300 Sliding Locks | Satin Chrome (US26D) / 2 Keys | In Stock (Same Day) |
| OA300-SLDR-PSA ARM | Sliding Door PSA Linkage Arm & Guide Block | OA300 Sliding Series | Stainless Steel / Satin Silver | In Stock (Same Day) |
| OA400-WRK-MASTER | Universal Washroom Package & Master Board | OA400-WRK Series | OBC-2015 & AODA Code Compliant | In Stock (Same Day) |
